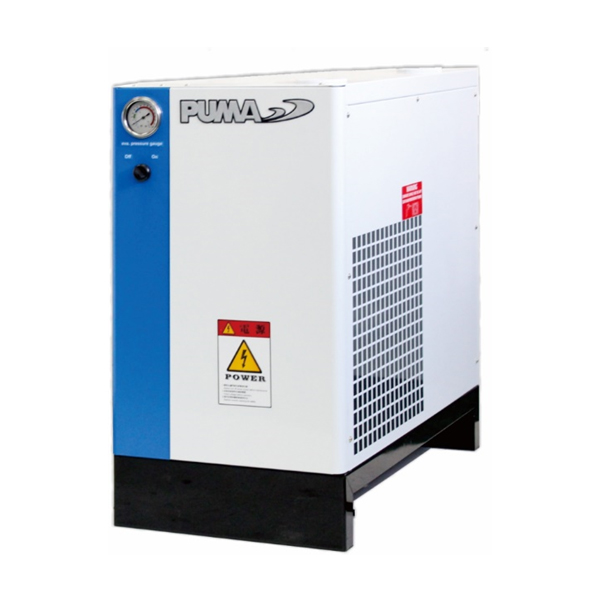

Refrigerated Air Dryer

NA Series High Efficiency and Low Pressure Loss

		05NA	10NA	15NA	20NA	30NA	50NA	75NA	100NA	150NA	200NA	250NA	300NA	400NA
	NM³/min	0.6	1.2	1.7	2.5	3.8	6.8	9	13	18	23	28	34	45
	SCFM	21	43	60	88	135	240	300	459	600	812	953	1130	1588
Air Compressor(HP)		1-5	7.5- 10	15	20	30	30-50	50-60	75	100	150	200	250	300
Inlet Temperature		NA: 45°C
Ambient Temperature		38°C
Dew Point		2-5°C (7Kg/cm²)
Working Pressure		7Kg/cm² Max. 10Kg /cm²
Refrigerant		R134a						R-22
Refrigerate Compressor (HP)		1/5	1/3	1/2	3/4	1	1-1/2	2	3	4	5	6	7.5	8
Power		220 single phase						220 / 380 / 440V 3phase
Connector Pipe Size		1/2"	3/4"		1"	1-1 /2"	2"	2 - 1/2"	3"	3"F	4"F	4"F	4"F	5"F
Dimensions (mm)	H	390	600	600	650	750	800	1000	1000	1150	1300	1300	1400	1500
	W	350	350	350	350	400	500	700	700	700	700	700	2000	2000
	D	400	640	640	770	920	920	1270	1270	1515	1665	1665	800	950
Weight(kg)		22	40	45	62	90	105	160	220	320	370	390	480	590

HA Series High Temperature Air Inlet Application

		05HA	10HA	15HA	20HA	30HA	50HA	75HA	100HA	150HA	200HA	250HA	300HA	400HA
	NM³/min	0.6	1.2	1.7	2.5	3.8	6.8	9	13	18	23	28	34	45
	SCFM	21	43	60	88	135	240	300	459	600	812	953	1130	1588
Air Compressor(HP)		1/5	7.5- 10	15	20	30	30-50	50-60	75	100	150	200	250	300
Inlet Temperature		HA:80°C
Ambient Temperature		38°C
Dew Point		2-5°C (7Kg/cm²)
Working Pressure		7Kg/cm² Max. 10Kg /cm²
Refrigerant		R134a				R-22
Refrigerate Compressor(HP)		1/5	1/3	1/2	3/4	1	1-1/2	2	3	4	5	6	7.5	8
Power		220 single phase						220V / 380V / 440V 3phase
Connector Pipe Size		1/2"	3/4"		1"	1-1/2"	2"	2 - 1/2"	3"	3"F	4"F	4"F	4"F	5"F
Dimensions (mm)	H	460	600	650	760	760	760	1200	1200	1400	1500	1500	1550	1600
	W	400	350	350	400	500	500	700	700	700	750	750	2000	2400
	D	500	640	770	820	1070	1070	1270	1270	1515	1665	1665	850	950
Weight(kg)		27	45	50	70	110	130	210	270	400	460	480	570	890
