1" & 1-1/2" Impact Wrench (Straight Type)

AT-5089 / AT-5089L
AT-5189

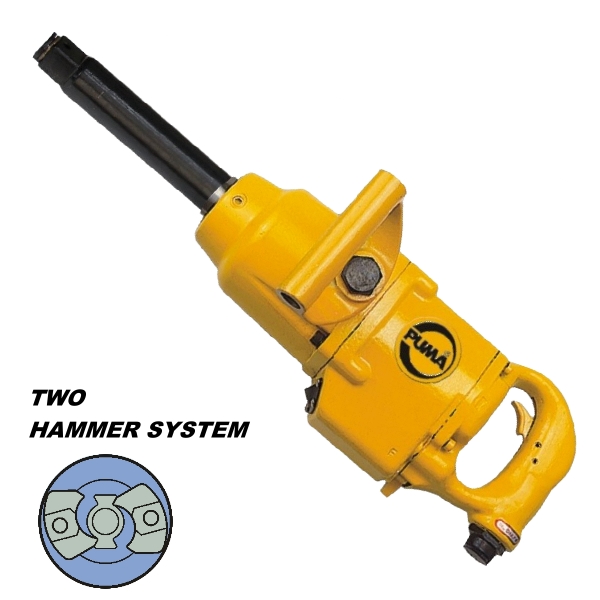

AT-5080
AT-5086

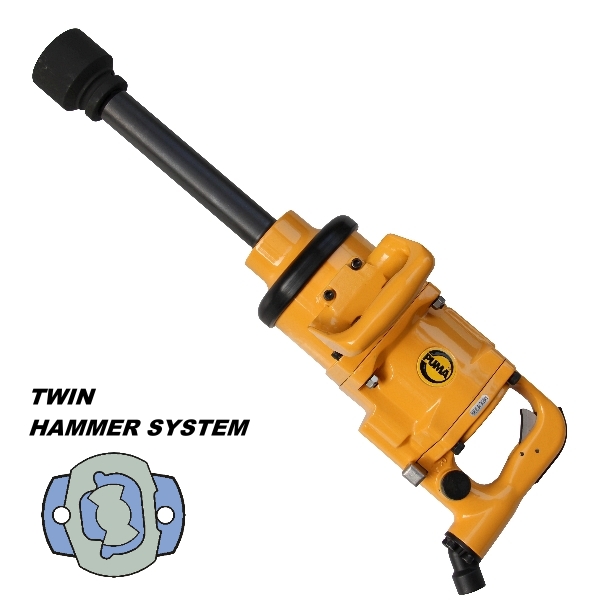

AT-5088 / AT-5088L

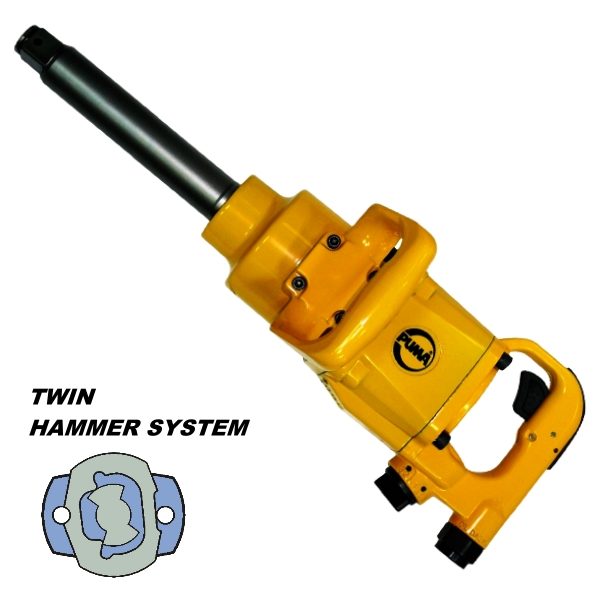

AT-5185 / AT-5185-6

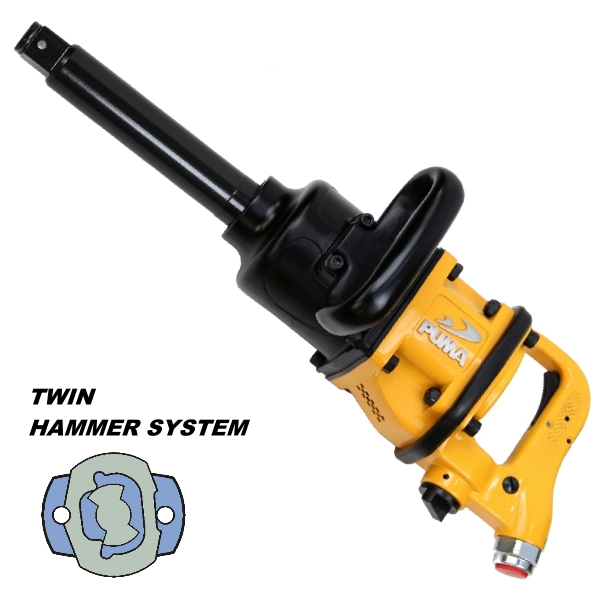

AT-5186 / AT-5186L

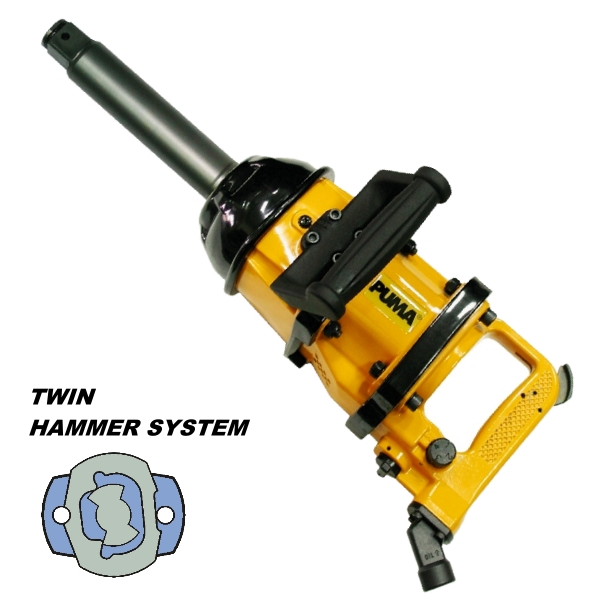

AT-5284 / AT-5284-6
AT-5280 / AT-5280-6
AT-5281 / AT-5281L
AT-5284 / AT-5284-6

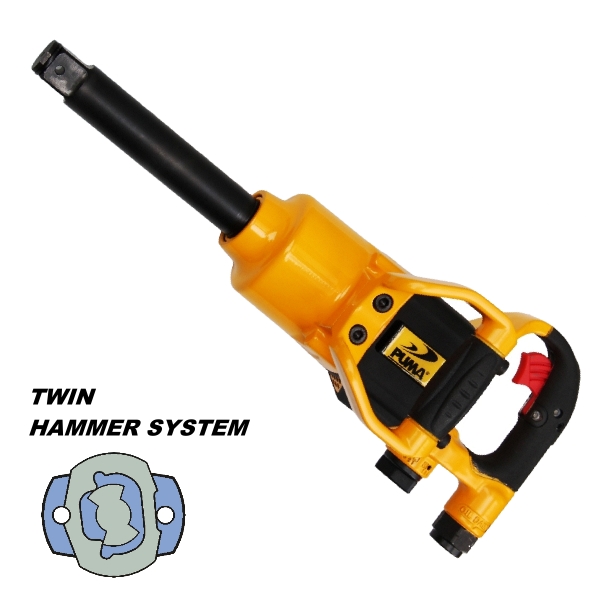

AT-5380 / AT-5380-6
AT-5382 / AT-5382L

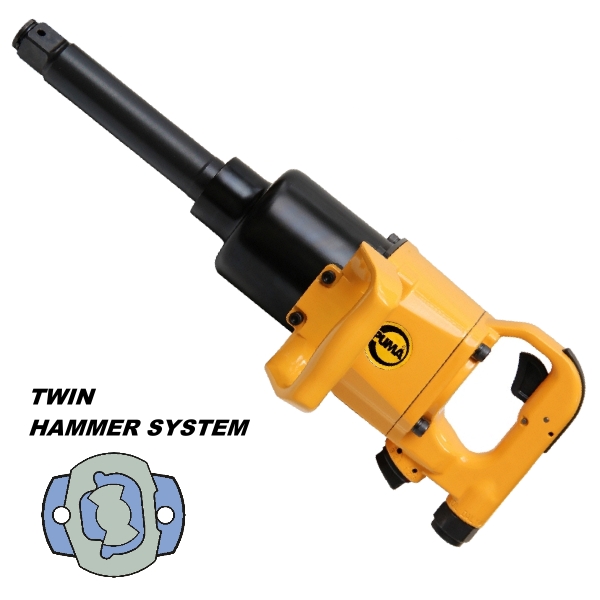

AT-5384 / AT-5384-6
1" & 1-1/2" Impact Wrench (Straight Type)

1” Impact Wrench

  • AT-5080
  • AT-5080
  • AT-5086
  • AT-5088
  • AT-5088L
  • AT-5185
  • AT-5185-6
  • AT-5186
  • AT-5186L

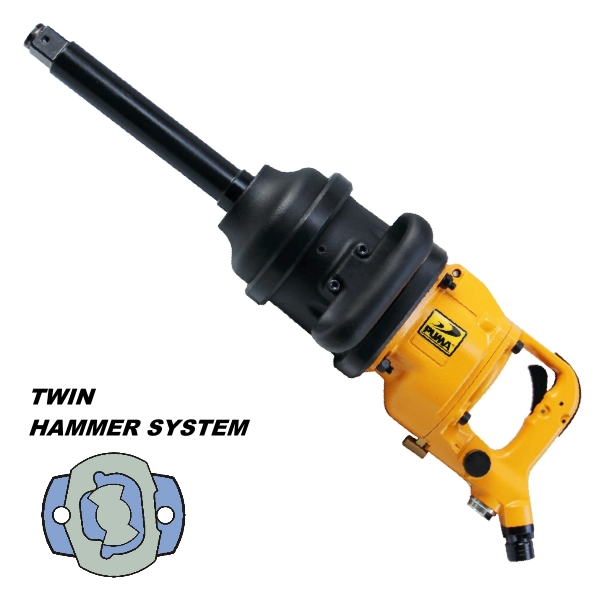

  • AT-5188
  • AT-5188L
  • AT-5280
  • AT-5280-6
  • AT-5281
  • AT-5281L
  • AT-5284
  • AT-5284-6
  • AT-5380
  • AT-5380-6
  • AT-5382
  • AT-8382L
  • AT-5384
  • AT-5384-6

1-1/2” Impact Wrench

  • AT-5089
  • AT-5089L
  • AT-5189
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

1-1/2” Impact Wrench

Model No.Square
Drive		Capacity
Bolt Size		Free
Speed
RPM		Max. TorqueOverall
Length		Air Inlet
(PT)		Air Hose
(ID)		Avg. Air
Consumption		Net WeightWorking Air
Pressure		packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
inchmmft-lbN.m.inch.mmscfml/minlbskgspsikg/cm²
AT-5089 1-1/2” 2 50 3000 2500 3390 16.93 430 1/2” 1/2” 24 679 34.82 15.8 90-115 6.3-8 1/Ctn/19.3 kg/1.5 7.5
AT-5089L 1-1/2” 2 50 3000 2500 3390 24.8 630 1/2” 1/2” 24 679 41.44 18.8 90-115 6.3-8 1/Ctn/24 kg/1.5 7.5
AT-5189 1-1/2” 2 50 3000 2500 3390 18.7 475 1/2” 1/2” 24 679 33.1 15.1 90-115 6.3-8 1/Ctn/16.9/0.84 7.5

1” Impact Wrench

Model No.Square
Drive		Capacity
Bolt Size		Free
Speed
RPM		Max. TorqueOverall
Length		Air Inlet
(PT)		Air Hose
(ID)		Avg. Air
Consumption		Net WeightWorking Air
Pressure		packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
inchmmft-lbN.m.inch.mmscfml/minlbskgspsikg/cm²
AT-5080 1” 1-1/4 32 3000 1400 1898 16.54 420 1/2” 1/2” 24.5 693 28.56 12.96 90 6.3 2/Ctn/27.5 kg/1.7’ 7.5
AT-5086 1” 1-1/4 32 3000 1400 1898 20.87 530 1/2” 1/2” 24.5 693 30.86 14 90 6.3 2/Ctn/29.5 kg/1.7’ 7.5
AT-5088 1” 2 50 3000 2500 3390 16.93 430 1/2” 1/2” 24 679 33.28 15.1 90-115 6.3-8 1/Ctn/18.7 kg/1.5 7.5
AT-5088L 1” 2 50 3000 2500 3390 24.8 630 1/2” 1/2” 24 679 37.16 16.86 90-115 6.3-8 1/Ctn/20.5 kg/1.5 7.5
AT-5185 1” 1-3/8 36 4000 1500 2034 15.35 390 1/2” 1/2” 22 623 22.26 10.1 90-115 6.3-8 1/Ctn/13.2 kg/1.5 7.5
AT-5185-6 1” 1-3/8 36 4000 1500 2034 21.26 540 1/2” 1/2” 22 623 24.86 11.3 90-115 6.3-8 1/Ctn/14.4 kg/1.5 7.5
AT-5186 1” 1-1/2 38 4000 1800 2441 15.0 381 1/2” 1/2” 25 708 20.5 9.3 90-115 6.3-8 2/Ctn/21.2 kg/1.47’ 7.5
AT-5186L 1” 1-1/2 38 4000 1800 2441 21.1 536 1/2” 1/2” 25 708 23.6 10.6 90-115 6.3-8 2/Ctn/23.8 kg/1.47’ 7.5
AT-5188 1” 2 50 3000 2500 3390 18.7 475 1/2” 1/2” 24 679  33.0 14.5 90-115 6.3-8 1/Ctn/16.3 kg/0.84 7.5
AT-5188L 1” 2 50 3000 2500 3390 26.18 665 1/2” 1/2” 24 679 36.1 16.4 90-115 6.3-8 1/Ctn/18.4 kg/1.1 7.5
AT-5280 1” 1-1/4 30 4000 1300 1763 13.78 350 3/8” 1/2” 19 538 14.55 6.6 90-115 6.3-8 2/Ctn/14.5 kg/1.7’ 5
AT-5280-6 1” 1-1/4 30 4000 1300 1763 19.69 500 3/8” 1/2” 19 538 16.75 7.6 90-115 6.3-8 2/Ctn/16.5 kg/1.7’ 5

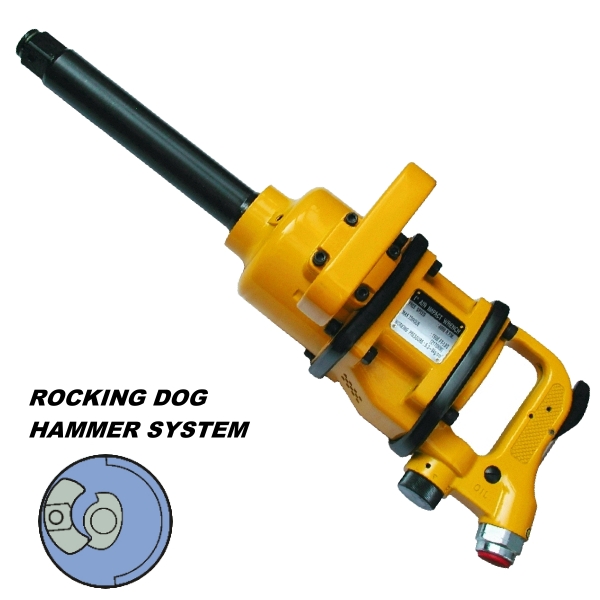

AT-5281 1” 1-3/8 36 3500 1600 2170 14.76 375 1/2” 1/2” 23.5 665 21.1 9.6 90 6.3 2/Ctn/22.2 kg/1.47’ 7.5
AT-5281L 1” 1-3/8 36 3500 1600 2170 20.87 530 1/2” 1/2” 23.5 665 24.2 11 90 6.3 2/Ctn/24.5 kg/1.47’ 7.5
AT-5284 1” 1-1/2 38 3800 1800 2441 14.37 365 1/2” 1/2” 24 679 24.2 11.0 90-115 6.3-8 2/Ctn/23.5 kg/1.7’ 7.5
AT-5284-6 1” 1-1/2 38 3800 1800 2441 20.27 515 1/2” 1/2” 24 679 26.45 12.0 90-115 6.3-8 2/Ctn/25.5 kg/1.7’ 7.5
AT-5380 1” 1-3/8” 36 5000 1600 2170 14.57 370 1/2” 1/2” 19 538 16.31 7.4 90-115 6.3-8 2/Ctn/17 kg/1.28’ 5
AT-5380-6 1” 1-3/8 36 5000 1600 2170 19.17 487 1/2” 1/2” 19 538 17.86 8.1 90-115 6.3-8 2/Ctn/19 kg/1.28’ 5

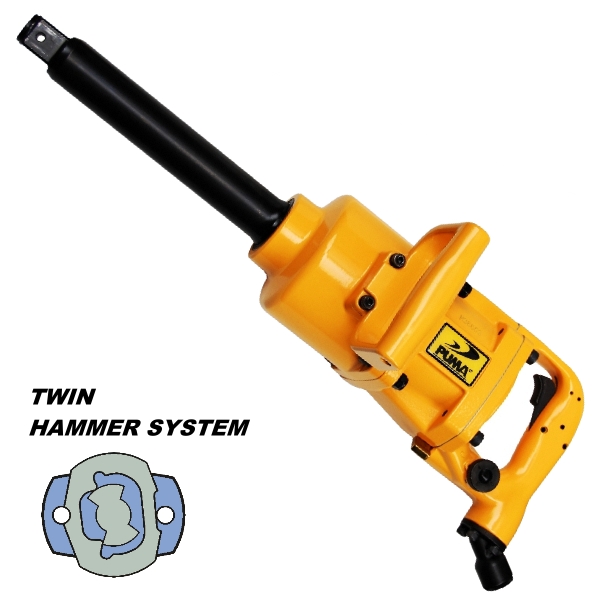

AT-5382 1” 1-3/4 45 4800 2400 3254 14.57 370 1/2” 1/2” 22 623 23.75 10.5 90-115 6.3-8 1/Ctn/11.7 kg/0.65’ 7.5
AT-8382L 1” 1-3/4 45 4800 2400 3254 22.44 570 1/2” 1/2” 22 623 26.23 11.9 90-115 6.3-8 1/Ctn/13.9 kg/1’ 7.5
AT-5384 1” 1-1/2 38 4000 1800 2441 15.1 384 1/2” 1/2” 22 623 24.7 11.2 90-115 6.3-8 1/Ctn/13.2 kg/1.02 7.5
AT-5384-6 1” 1-1/2 38 4000 1800 2441 20.2 514 1/2” 1/2” 22 623 27.6 12.5 90-115 6.3-8 1/Ctn/14.4 kg/1.5 7.5
