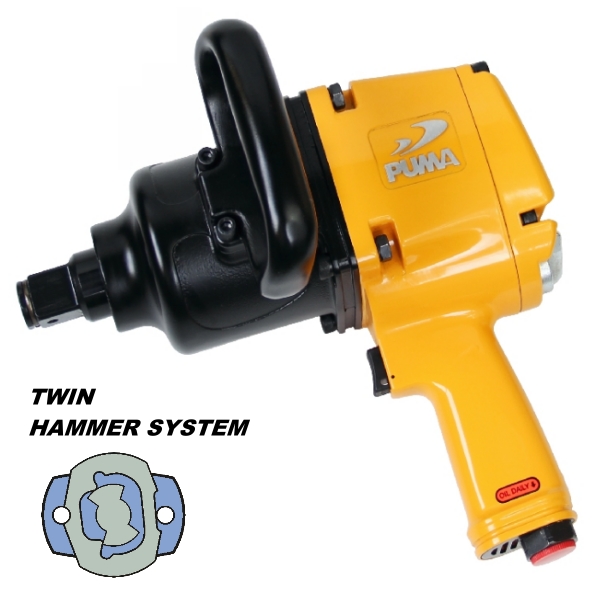

1" Impact Wrench (Pistol Type)

AT-5186P
AT-5281P
AT-5285P
AT-5287P
AT-5289P
AT-5380P
AT-5381P
1" Impact Wrench (Pistol Type)
  • AT-5186P
  • AT-5281P
  • AT-5285P
  • AT-5287P
  • AT-5289P
  • AT-5380P
  • AT-5381P
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

1" Impact Wrench (Pistol Type)

Model No.Square
Drive		Capacity
Bolt Size		Free
Speed
RPM		Max. TorqueOverall
Length		Air Inlet
(PT)		Air Hose
(ID)		Avg. Air
Consumption		Net WeightWorking Air
Pressure		packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
inchmmft-lbN.m.inch.mmscfml/minlbskgspsikg/cm²
AT-5186P 1” 1-3/8 36 3500 1600 2170 11.81 300 1/2” 1/2” 23.5 665 21.20 9.60 90-115 6.3-8 2/Ctn/22.0 kg/1.35 7.5
AT-5281P 1” 1-1/4 32 3500 1400 1898 11.81 300 1/2” 1/2” 20.0 566 21.10 9.60 90 6.3 2/Ctn/22.0 kg/1.35 7.5
AT-5285P 1” 1-1/4 30 5500 1100 1492 8.50 216 3/8” 1/2” 16.0 453 13.55 6.15 90 6.3 4/Ctn/25.5 kg/1.30 5
AT-5287P 1” 1-1/8 28 7500 1000 1356 8.39 213 3/8” 1/2” 14.0 396 9.03 4.10 90 6.3 4/Ctn/19.0 kg/1.30 5
AT-5289P 1” 1-1/8 28 5500 1000 1356 9.25 235 3/8” 1/2” 16.0 453 8.00 3.64 90 6.3 4/Ctn/17.0 kg/1.32 5
AT-5380P 1” 1-3/8 34 5000 1500 2034 10.82 275 1/2” 1/2” 18.0 509 16.32 7.40 90 6.3 2/Ctn/17.2 kg/1.24 7.5
AT-5381P 1” 1-1/4 30 6500 1100 1492 8.90 227 3/8” 1/2” 16.0 453 8.60 3.90 90 6.3 4/Ctn/18.1 kg/1.24 5

P: Pistol type
