3 / 5 / 6.5 H.P. Two Stage Belt Drive Stationary Series 3-5-6.5-H.P.-Two-Stage-Belt-Drive-Stationary-Series

Model	Electric Motor			Pump R.P.M	Max. Working PSI.	FAD-CFM		Tank			Weight (lbs.)	Magnetic Starter
Model	H.P.	R.P.M. / FRAME	Volt./Phase/Amp.	Pump R.P.M	Max. Working PSI.	@ 90 PSI	@ 175 PSI	Gal.	Style	Code	Weight (lbs.)	Magnetic Starter

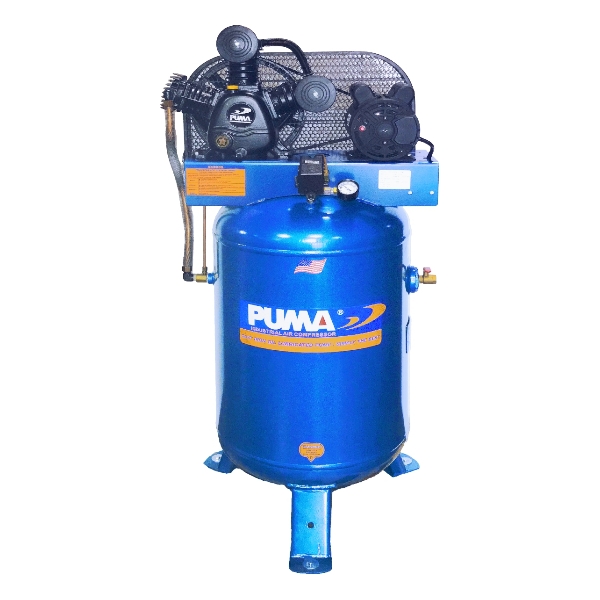

TE-3040V	3	3450 / 56	208-230 / Single / 16.6-15	985	175	10.2	9.3	40	Vertical	ASME	260	n/a
TE-5040V	5	3450 / 56	208-230 / Single / 23-21	985	175	14	12.8	40	Vertical	ASME	280	Option

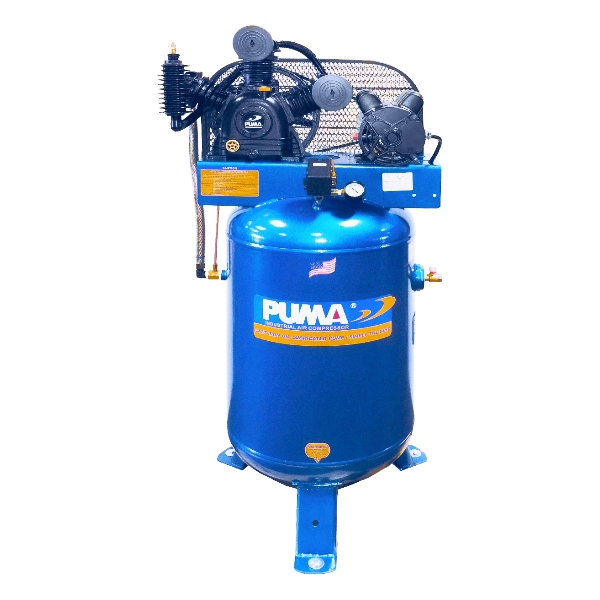

TE-6540V	6.5	3450 / 182	208-230 / Single / 24.5-23	1268	175	17	16	40	Vertical	ASME	295	Combo Pressure Switch Starter
TE-5080V	5	3450 / 56	208-230 / Single / 21-19	985	175	14	12.8	80	Vertical	ASME / CRN	460	Option

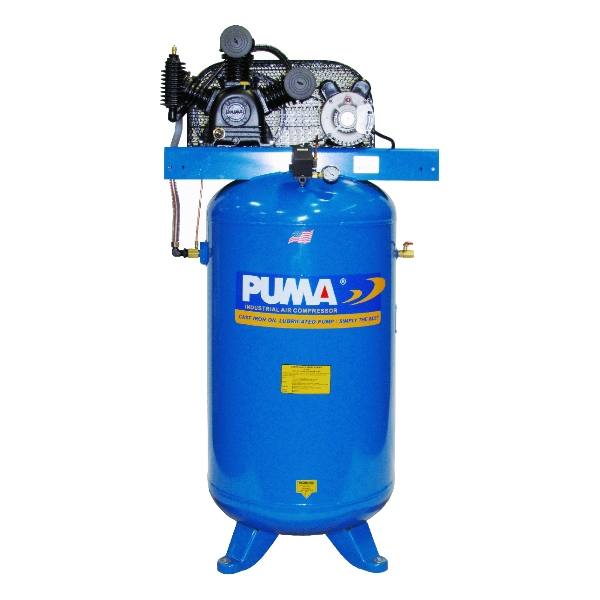

TE-6580V	6.5	3450 / 182	208-230 / Single / 24.5-23	1268	175	17	16	80	Vertical	ASME / CRN	475	Combo Pressure Switch Starter

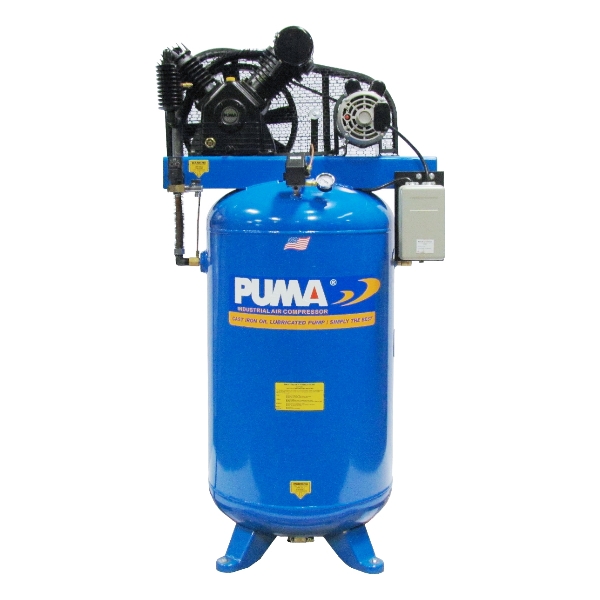

TN-6580VM	6.5	3450 / 182	208-230 / Single / 24.5-23	985	175	17	16	80	Vertical	ASME / CRN	500	YES

Oil lubricated, two stage cast iron pumps. Two cylinder V type or Three cylinder radial type pumps.
1/2” outlet ball valve and 1/4” extended drain ball valve on all units.
All tanks are rated at 200 PSI with either ASME or CRN certified.
Professional grade units are available in accessories such as automatic water drain, vibration damper, and high flow heavy duty regulator filter.
