3/4" Impact Wrench 3.4ImpactWrench

SPECIFICATIONS

Model No.	Square Drive	Capacity Bolt Size		Free Speed RPM	Max. Torque		Overall Length		Air Inlet (PT)	Air Hose (ID)	Avg. Air Consumption		Net Weight		Working Air Pressure		Packing Pcs/Ctn/G.W./Cuft (Kg)	Sug. Air Comp. (HP)
Model No.	Square Drive	inch	mm	Free Speed RPM	ft-lb	N.m.	inch.	mm	Air Inlet (PT)	Air Hose (ID)	scfm	l/min	lbs	kgs	psi	kg/cm²	Packing Pcs/Ctn/G.W./Cuft (Kg)	Sug. Air Comp. (HP)
AT-5066	3/4”	1	25	6500	800	110	8.98	228	1/4”	3/8”	14	396	10	4.55	90	6.3	4/Ctn/20.7 kg/1.32’	5
AT-5066L	3/4”	1	25	6500	800	110	13.78	350	1/4”	3/8”	14	396	11.2	5.1	90	6.3	4/Ctn/23.6 kg/1.48’	5
AT-5069	3/4”	1-1/8	28	4000	950	1288	12.6	320	3/8”	1/2”	19	538	11.2	5.1	90	6.3	4/Ctn/22.5 kg/1.5’	5
AT-5069-4	3/4”	1-1/8	28	4000	950	1288	14.37	365	3/8”	1/2”	19	538	11.6	5.25	90	6.3	4/Ctn/23.5 kg/1.5’	5

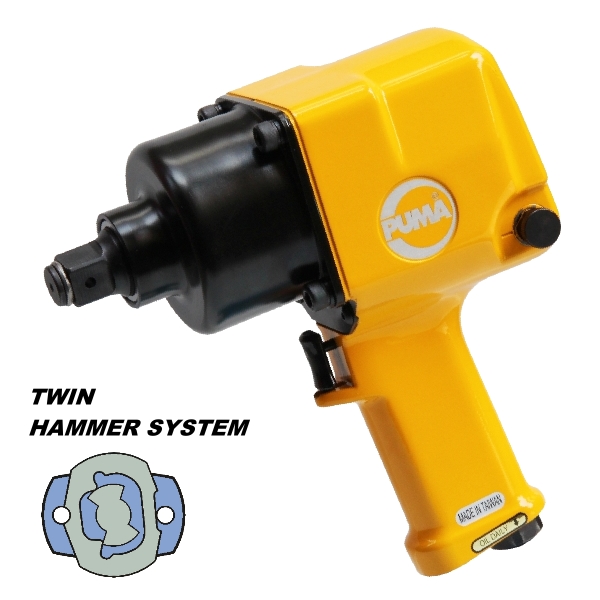

AT-5165	3/4”	1-1/4	30	5500	1000	1356	8.5	216	3/8”	1/2”	16	453	13.55	6.15	90	6.3	4/Ctn/25.5 kg/1.3’	5

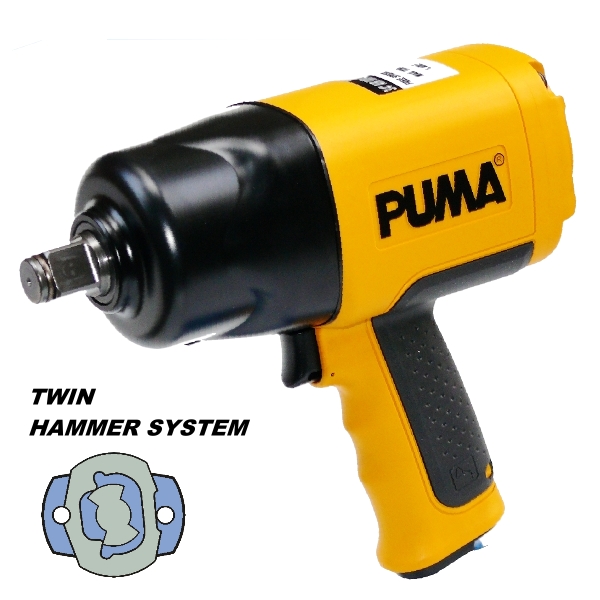

AT-5169	3/4”	1-1/8	28	5500	1000	1356	9.25	235	3/8”	1/2”	16	453	8.0	3.64	90	6.3	4/Ctn/17 kg/1.32’	5

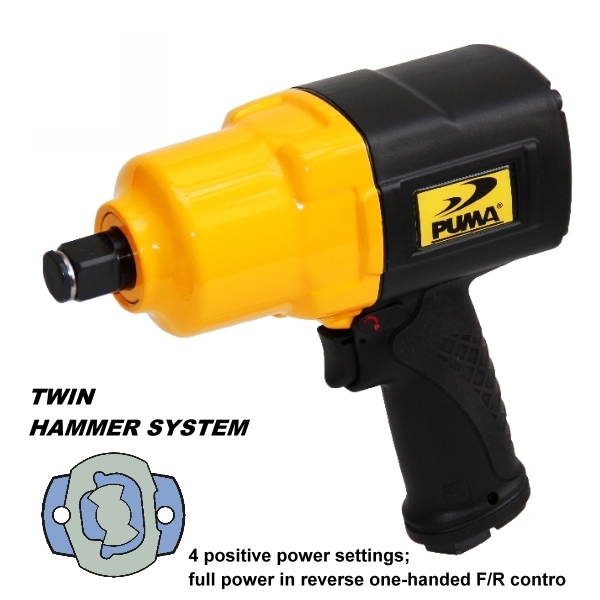

AT-5261	3/4”	1-1/8	28	6500	1050	1424	8.74	222	3/8”	1/2”	16	453	8.16	3.7	90	6.3	4/Ctn/17.4 kg/1.24’	5

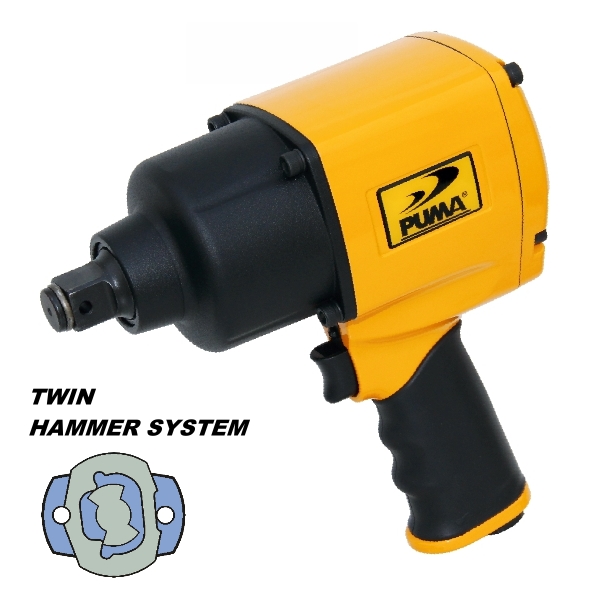

AT-5266	3/4”	1-1/4	32	4500	1200	1627	8.46	215	3/8”	3/8”	14	396	11.0	5.0	90	6.3	4/Ctn/23.0 kg/1.32’	5
AT-5267	3/4”	1-1/8	28	7500	1000	1356	8.39	213	3/8”	3/8”	14	396	8.8	4.0	90	6.3	4/Ctn/19 kg/1.3’	5

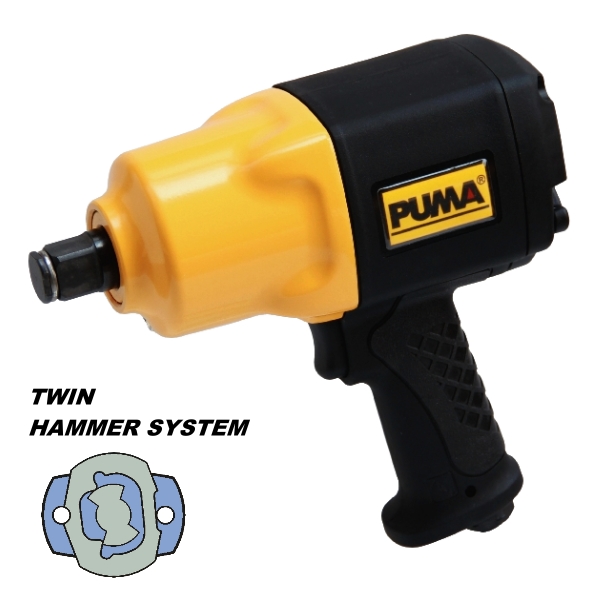

AT-5363	3/4”	1-1/4	30	6500	1100	1492	8.9	227	3/8”	1/2”	16	453	9.41	4.27	90	6.3	4/Ctn/22.0 kg/1.32’	5

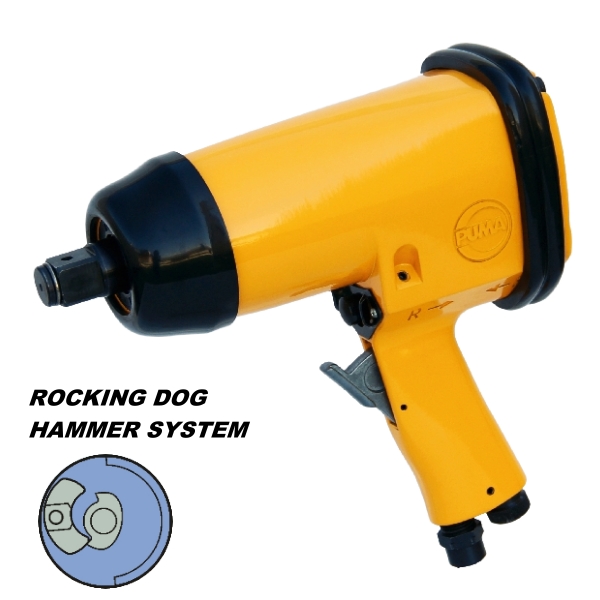

AT-5060	3/4”	3/4	18	5000	500	69.0	9.49	241	1/4”	3/8”	14.5	410	9.96	4.52	90	6.3	4/Ctn/20.0 kg/1.28’	5

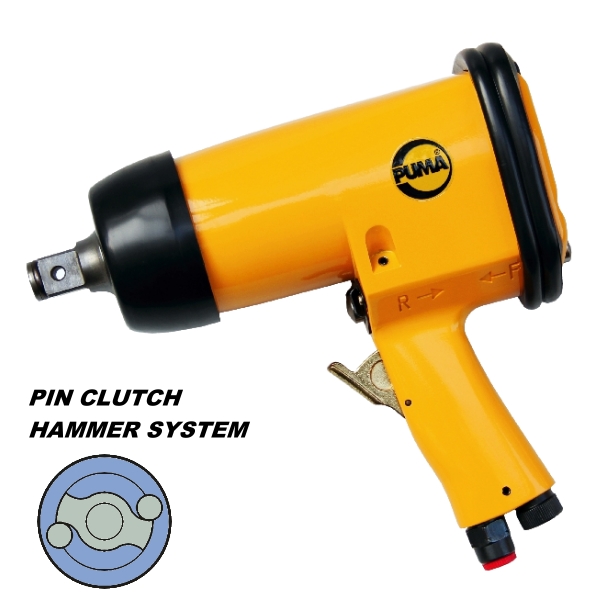

AT-5061	3/4”	1	25	4800	800	110	9.84	250	1/4”	3/8”	14	396	10.4	4.7	90	6.3	4/Ctn/21.0 kg/1.32’	5

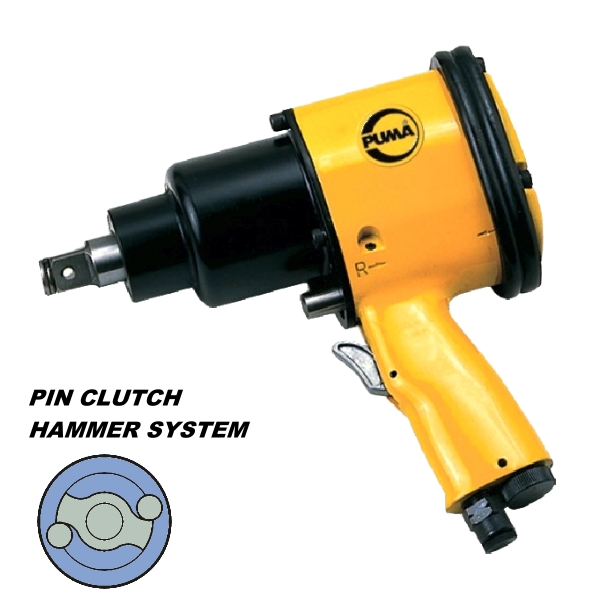

AT-5065	3/4”	1	25	4800	800	110	9.45	240	1/4”	3/8”	14.5	410	10.98	4.98	90	6.3	4/Ctn/22.3 kg/1.32’	5

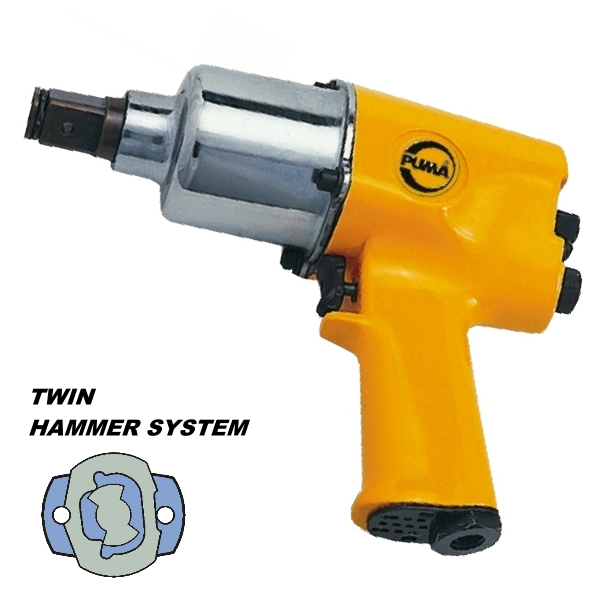

AT-5067	3/4”	3/4	18	6800	650	90	8.66	220	1/4”	3/8”	15	425	6.52	2.96	90	6.3	8/Ctn/26.2 kg/1.2’	5

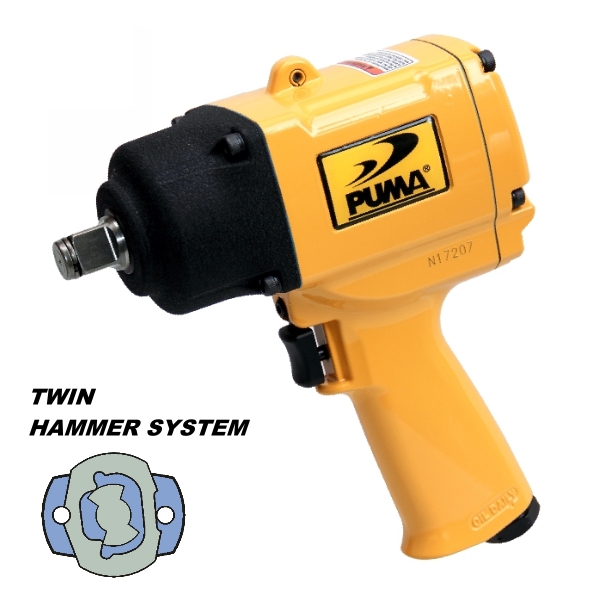

AT-5262	3/4”	13/16	20	7500	700	96.6	7.0	178	1/4”	3/8”	12	340	5.91	2.68	90	6.3	8/Ctn/24.5 kg/1.2’	3

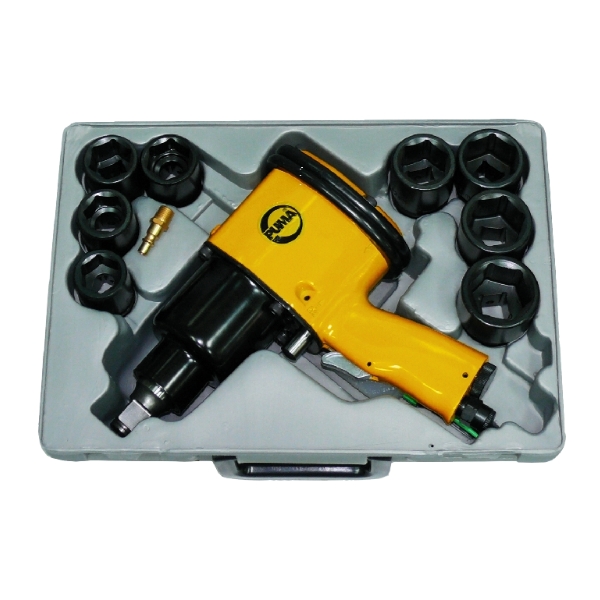

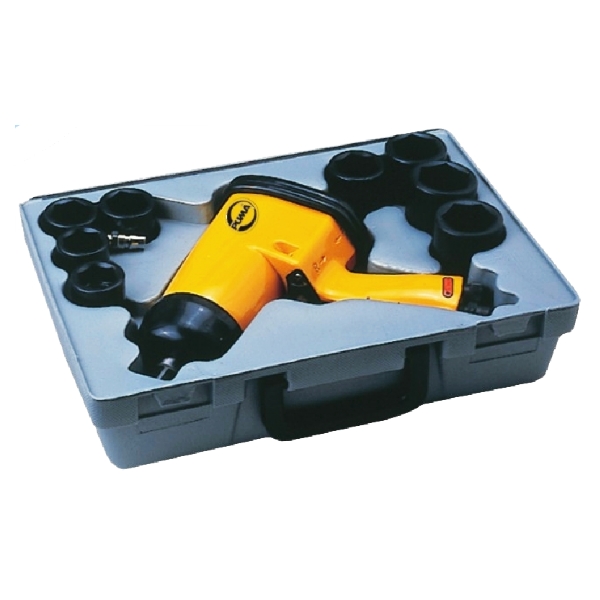

Model No.	AT-5060K	AT-5061K	AT-5065K
Contents	1 Pc AT-5060 8 Pcs Air Socket：26,27,29,30,32,35, 36,38 mm 2 Pcs Hex. Wrench (4, 5 mm) 1 Pc Nipple 1 Pc Oil Pot 1 Pc Plastic Case Packing：2 Sets/Ctn/18.5 kg/1.79’	1 Pc AT-5061 8 Pcs Air Socket：26,27,29,30,32,35, 36,38 mm 2 Pcs Hex. Wrench (4, 5 mm) 1 Pc Nipple 1 Pc Oil Pot 1 Pc Plastic Case Packing：2 Sets/Ctn/19 kg/1.79’	1 Pc AT-5065 8 Pcs Air Socket：26,27,29,30,32,35, 36,38 mm 2 Pcs Hex. Wrench (4, 5 mm) 1 Pc Nipple 1 Pc Oil Pot 1 Pc Plastic Case Packing：2 Sets/Ctn/20 kg/1.79’
