3/8" & 1/4" Air Drill

3/8" & 1/4" Air Drill
3/8" & 1/4" Air Drill
  • AT-4130(S)
  • AT-4131(S)
  • AT-4131(S)

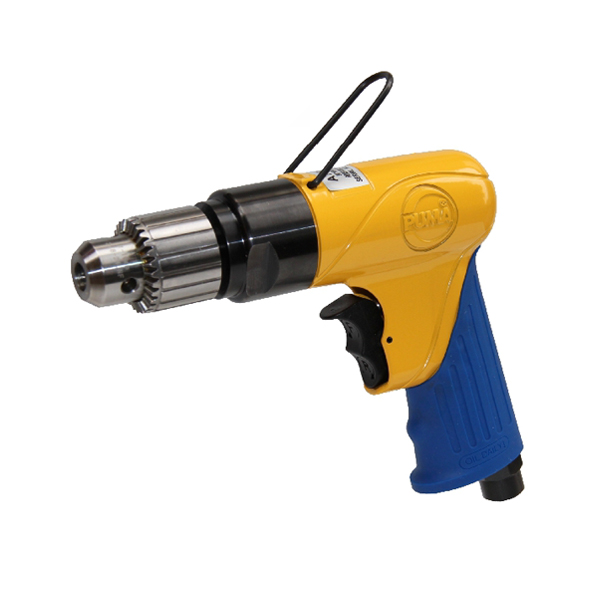

  • AT-4136(S)
  • AT-4237
  • AT-4237R
  • AT-4330
  • AT-4331R
  • AT-4332
  • AT-4333
  • AT-4334R
  • AT-4020
  • AT-4022
  • AT-4023
  • AT-4032
  • AT-4037(S)
  • AT-4134(S)
  • AT-4030 (S)
  • AT-4233(S)
  • AT-4236
  • AT-4522C
  • AT-4031 (S)
  • AT-4034(S)
  • AT-4035 (S)
  • AT-4036 (S)
  • AT-4038 (S)
  • AT-4139 (S)
  • AT-4139 (S)
  • AT-4235 (S)
  • AT-4238 (S)
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

(at 90psi-6.2bar)

Model No.Chuck SizeFree
Speed
R.P.M.		SpindleOverall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
inchmminchmmscfml/minlbkg
AT-4130(S) 3/8 10 2300 3/8”-24 7.56 192 1/4” 3/8” 10 283 2.76 1.25 10/Ctn/15kg/0.8’ 3
AT-4131(S) 3/8 10 2300 3/8”-24 7.56 192 1/4” 3/8” 10 283 2.76 1.25 10/Ctn/15kg/0.8’ 3
AT-4135(S) 3/8 10 2300 3/8”-24 7.68 195 1/4” 3/8” 10 283 2.87 1.3 10/Ctn/15kg/0.8’ 3
AT-4136(S) 3/8 10 2300 3/8”-24 7.68 195 1/4” 3/8” 10 283 2.87 1.3 10/Ctn/15kg/0.8’ 3
AT-4237 3/8 10 3000 3/8”-24 7.68 195 1/4” 3/8” 10 283 2.87 1.3 10/Ctn/15kg/0.8’ 3
AT-4237R 3/8 10 3000 3/8”-24 7.68 195 1/4” 3/8” 10 283 2.87 1.3 10/Ctn/15kg/0.8’ 3
AT-4330 3/8 10 2800 3/8”-24 7.87 200 1/4” 3/8” 12 340 2.20 1.0 10/Ctn/12kg/0.8’ 3
AT-4331R 3/8 10 2000 3/8”-24 8.46 215 1/4” 3/8” 12 340 2.29 1.04 10/Ctn/12.5kg/0.8’ 3
AT-4332 3/8 10 5600 3/8”-24 7.87 200 1/4” 3/8” 12 340 2.09 0.95 10/Ctn/11.5kg/0.8’ 3
AT-4333 3/8 10 2600 3/8”-24 8.58 218 1/4” 3/8” 13 368 2.42 1.1 10/Ctn/13kg/0.8’ 3
AT-4334R 3/8 10 2800 3/8”-24 9.21 234 1/4” 3/8” 13 368 2.42 1.1 10/Ctn/13kg/0.8’ 3

Model No.Chuck SizeFree
Speed
R.P.M.		SpindleOverall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
inchmminchmmscfml/minlbkg

AT-4020

 1/4 6.5 4500 3/8”-24 6.22 158 1/4” 3/8” 8 226 1.50 0.68 20/Ctn/16 kg /1’ 3

AT-4022

 1/4 6.5 2600 3/8”-24 6.1 155 1/4” 3/8” 8 226 1.19 0.54 20/Ctn/15 kg /1’ 3

AT-4023

 1/4 6.5 2600 3/8”-24 6.1 155 1/4” 3/8” 8 226 1.19 0.54 20/Ctn/15 kg /1’ 3

AT-4032

 3/8 10 2600 3/8”-24 6.5 165 1/4” 3/8” 7 198 2.2 1 10/Ctn/12.9 kg /1’ 3

AT-4037(S)

 3/8 10 4500 3/8”-24 7.72 196 1/4” 3/8” 11 311 2.53 1.15 10/Ctn/13 kg /0,8’ 3

AT-4134(S)

 3/8 10 1500 3/8”-24 8.66 220 1/4” 3/8” 14 396 2.73 1.24 10/Ctn/15 kg /1’ 3
AT-4232(S) 3/8” 10 2000 3/8”-24 7.56 192 1/4” 3/8” 8.5 240 2.09 0. 95 10/Ctn/11 kg /0,8’ 3
AT-4233(S) 3/8” 10 1800 3/8”-24 7.56 192 1/4” 3/8” 8.5 240 2.09 0. 95 10/Ctn/11 kg /0,8’ 3
AT-4236 3/8” 10 1650 -- 6.69 170 1/4” 3/8” 9 255 3.2 1.45 10/Ctn/18.5 kg /1.1’ 3

Model No.Chuck SizeFree
Speed
R.P.M.		SpindleOverall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
inchmminchmmscfml/minlbkg
AT-4030 (S) 3/8 10 1800 3/8”-24 6.89 175 1/4” 3/8” 10 283 2.34 1.06 10/Ctn/13 kg /0,8’ 3
AT-4031 (S) 3/8 10 1800 3/8”-24 7.68 195 1/4” 3/8” 10 283 2.36 1.07 10/Ctn/13 kg /0,8’ 3
AT-4034(S) 3/8 10 1800 3/8”-24 7.48 190 1/4” 3/8” 13 368 2.51 1.14 10/Ctn/13.3 kg /1’ 3
AT-4035 (S) 3/8 10 1900 3/8”-24 7.68 195 1/4” 3/8” 9 255 2.14 0.97 10/Ctn/13kg/0.73’ 3
AT-4036 (S) 3/8 10 1700 3/8”-24 8.46 215 1/4” 3/8” 9 255 2.36 1.07 10/Ctn/16 kg /1.36’ 3
AT-4038 (S) 3/8 10 2600 3/8”-24 8.46 215 1/4” 3/8” 10.5 297 2.03 0.92 20/Ctn/20 kg /0.85’ 3
AT-4139 (S) 3/8 10 4500 3/8”-24 8.74 222 1/4” 3/8” 10 283 2.05 0.93 20/Ctn/22 kg /0.85’ 3
AT-4234 (S) 3/8 10 1800 3/8”-24 7.28 185 1/4” 3/8” 10 283 2.53 1.15 10/Ctn/13 kg /0,8’ 3
AT-4235 (S) 3/8 10 1800 3/8”-24 7.28 185 1/4” 3/8” 10 283 2.53 1.15 10/Ctn/13 kg /0,8’ 3
AT-4238 (S) 3/8 10 4500 3/8”-24 9.45 240 1/4” 3/8” 12 340 2.38 1.08 20/Ctn/ 23kg /0.85’ 3
