Air Belt Sander

Air Belt Sander
Air Belt Sander
  • AT-7012
  • AT-7109
  • AT-7110
  • AT-7122

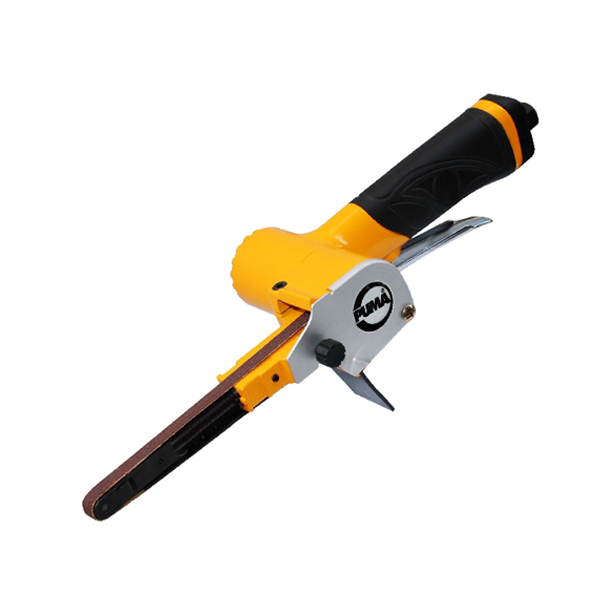

  • AT-7220
  • AT-7221
  • AT-7222
  • AT-7222P
  • AT-7223
  • AT-7223P
  • AT-7224
  • AT-7009
  • AT-7010
  • AT-7111
  • AT-7124
  • AT-7125
  • AT-7126
  • AT-7127
  • AT-7129
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
Model No.Sanding Belt
Size		Free
Speed
RPM		Overall
Length		Avg. Air
Consumption		Net WeightPacking
Pcs/Ctn/G.W./Cuft
(kg)		Sug. Air
Comp.
(HP)
inchmminchmmscfml/minlbkg
AT-7109 1-3/16×21-1/4 30×540 12000 14.96 380 13 368 4.41 2.0 6/Ctn/15 kg/2.5’ 3
AT-7110 2-3/8×10-1/4 60×260 6000 7.28 185 8 226 3.09 1.4 10/Ctn/15 kg/2.0’ 3
AT-7122 2×9-1/4 50×235 8500 8.8 223 8 226 1.68 0.76 10/Ctn/9 kg/1.0 3
AT-7220 1/4х18 6×457 17000 15.35 390 8 226 2.2 1.0 10/Ctn/12 kg/2.0’ 3
AT-7221 25/64х13 10×330 17000 12.83 326 8 226 1.94 0.88 20/Ctn/18.6 kg/1.4’ 3
AT-7222 25/32х20 20×520 16000 16.02 407 8 226 2.87 1.3 10/Ctn/14 kg/2.0’ 3
AT-7222P 25/32х20 20×520 16000 16.02 407 8 226 2.87 1.3 10/Ctn/14 kg/2.0’ 3
AT-7223 1-3/16×21-1/4 30×540 13000 16.38 416 14 396 3.09 1.4 10/Ctn/16 kg/2.0’ 5
AT-7223P 1-3/16×21-1/4 30×540 13000 16.38 416 14 396 3.09 1.4 10/Ctn/16 kg/2.0’ 5
AT-7224 1-3/16×25-3/16 30×640 13000 15.35 390 14 396 4.23 1.92 6/Ctn/13 kg/2.0’ 5

Model No.Sanding Belt
Size		Free
Speed
RPM		Overall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net WeightWorking Air
Pressure		Packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug. Air
Comp.
(HP)
inchmminchmmscfml/minlbkgpsikg/cm²
AT-7009 25/64×13 10×330 16000 11.42 290 1/4” 3/8” 8 226 1.94 0.88 90 6.3 20/Ctn/17 kg/1.4’ 3
AT-7010 25/32×20 20×520 16000 14.17 360 1/4” 3/8” 8 226 2.56 1.16 90 6.3 10/Ctn/13 kg/1.8’ 3
AT-7111 1/2×24 12.7×610 16000 16.93 430 1/4” 3/8” 8 226 2.29 1.04 90 6.3 10/Ctn/10.6 kg/1.1’ 3
AT-7124 1/4×13 6×330 16000 12.6 320 1/4” 3/8” 8 226 2.09 0.95 90 6.3 10/Ctn/11 kg/1.4’ 3
AT-7125 25/64×13 10×330 16000 12.6 320 1/4” 3/8” 8 226 2.09 0.95 90 6.3 10/Ctn/11 kg/1.4’ 3
AT-7126 25/32×20 20×520 16000 16.93 430 1/4” 3/8” 8 226 3.09 1.4 90 6.3 10/Ctn/15 kg/1.4’ 3
AT-7127 1/2×24 12.7×610 16000 17.91 455 1/4” 3/8” 8 226 2.42 1.1 90 6.3 10/Ctn/13 kg/1.4’ 3
AT-7129 25/32×20 20×520 16000 15.35 390 1/4” 3/8” 8 226 3.02 1.37 90 6.3 10/Ctn/15 kg/1.4’ 3
