Air File AirFile

Model No.	Shank size (mm)	Stroke Length (mm)	Stroke Per Minute (B.P.M.)	Overall Length		Air Inlet (PT)	Air Hose (ID)	Hose Ass’y Length (M)	Avg. Air Consumption		Net Weight		Working Air Pressure		Packing Pcs/Ctn/G.W./Cuft (kg)	Sug. Air Comp. (HP)
Model No.	Shank size (mm)	Stroke Length (mm)	Stroke Per Minute (B.P.M.)	inch	mm	Air Inlet (PT)	Air Hose (ID)	Hose Ass’y Length (M)	scfm	l/min	lb	kg	psi	kg/cm²	Packing Pcs/Ctn/G.W./Cuft (kg)	Sug. Air Comp. (HP)
AT-6066	Ø3	0.5~1	21000	8.07	205	1/4”	1/4”	1.5	6	170	1.19	0.54	90	6.3	20/Ctn/16 kg/1.85’	2
AT-6067	Ø5	3~5	12000	8.07	205	1/4”	1/4”	1.5	5	142	1.19	0.54	90	6.3	20/Ctn/16.6 kg/1.85’	2
AT-6068	Ø5	7~10	10000	7.68	195	1/4”	1/4”	1.5	4	113	1.41	0.64	90	6.3	20/Ctn/19.7 kg/1.85’	2
AT-6069A	Ø3	0.3	50000	8.27	210	1/4”	1/4”	1.5	4	113	0.42	0.19	90	6.3	38/Ctn/18 kg/2.19’	2

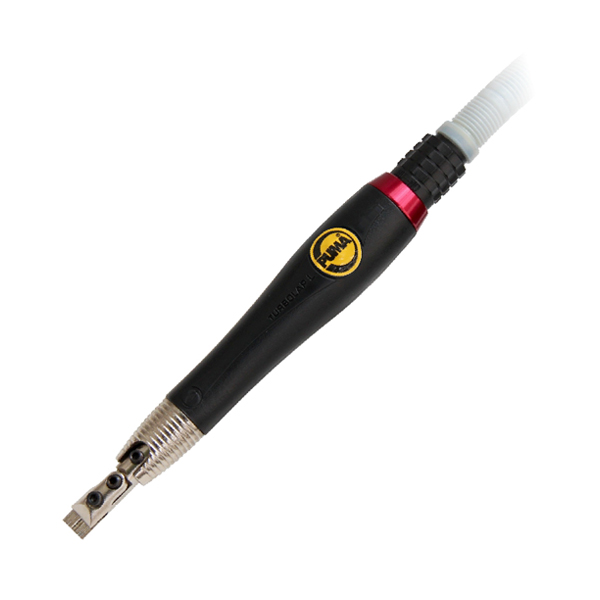

AT-6069B	Ø3	0.7	22000	8.27	210	1/4”	1/4”	1.5	4	113	0.42	0.19	90	6.3	38/Ctn/18 kg/2.19’	2
AT-6069C	Ø3	1.2	15000	8.27	210	1/4”	1/4”	1.5	4	113	0.42	0.19	90	6.3	38/Ctn/18 kg/2.19’	2
AT-6070A	Ø3	0.3	50000	8.27	210	1/4”	1/4”	1.5	4	113	0.42	0.19	90	6.3	38/Ctn/18 kg/2.19’	2
AT-6070B	Ø3	0.7	22000	8.27	210	1/4”	1/4”	1.5	4	113	0.42	0.19	90	6.3	38/Ctn/18 kg/2.19’	2
AT-6070C	Ø3	1.2	15000	8.27	210	1/4”	1/4”	1.5	4	113	0.42	0.19	90	6.3	38/Ctn/18 kg/2.19’	2
