Air Grease Gun

Air Grease Gun
Air Grease Gun
  • AT-6036
  • AT-6036L
  • AT-6037

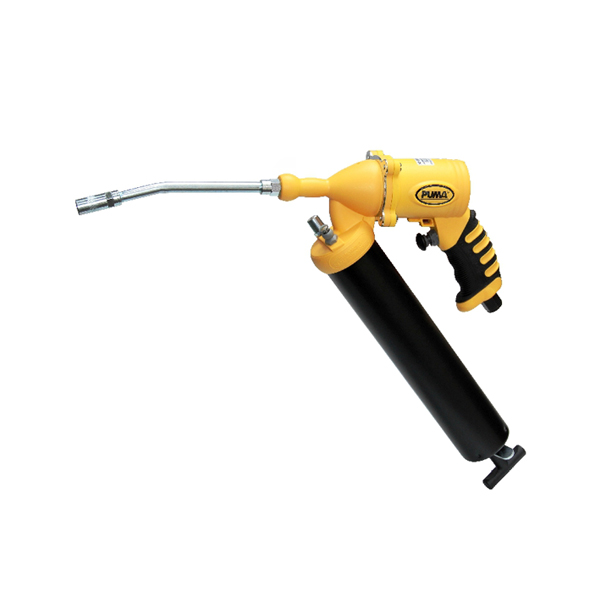

  • AT-6038
  • AT-6038L
  • AT-6138
  • AT-6138L
  • AT-6039
  • HT-6037
  • HT-6038
  • AT-6036K
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
Model No.CapacityGrease
Port
Outlet
PT(NPT)		Air
Inlet
(PT)		Air
Hose
(ID)		Output
Pressure		Output
volume
(ml/min.)		Net WeightWorking Air
Pressure		Packing
Pcs/Ctn/G.W./Cuft		Sug.
Air
BulkCartridgelbkgpsikg/cm²
AT-6036 400 cc 14 oz 1/8” 1/4” 3/8” 3600 psi -- 3.09 1.4 90 6.3 10/Ctn/17.7 kg/2.2’ 1
AT-6036L 500 cc 16 oz 1/8” 1/4” 3/8” 3600 psi -- 3.31 1.5 90 6.3 10/Ctn/18.0 kg/2.6’ 1
AT-6037 400 cc 14 oz 1/8” 1/4” 3/8” 3600 psi 200 3.53 1.6 90 6.3 10/Ctn/18.9 kg/2.2’ 1
AT-6038 400 ml 14 oz 1/8” 1/4” 3/8” 3600 psi -- 2.2 1.0 90 6.3 10/Ctn/14 kg/2.5’ 1
AT-6038L 500 ml 16 oz 1/8” 1/4” 3/8” 3600 psi -- 2.2 1.0 90 6.3 10/Ctn/14 kg/2.5’ 1
AT-6138 400 ml 14 oz 1/8” 1/4” 3/8” 3600 psi 200 2.2 1.0 90 6.3 10/Ctn/14 kg/2.5’ 1
AT-6138L 500 ml 16 oz 1/8” 1/4” 3/8” 3600 psi 200 2.2 1.0 90 6.3 10/Ctn/14 kg/2.5’ 1
AT-6039 400 ml 14 oz 1/8” 1/4” 3/8” 6000 psi 200~400 7.05 3.2 90 6.3 5/Ctn/21 kg/3’ 1

Model No.CapacityGrease
Port Outlet
PT(NPT)		Output
Pressure		Net WeightPacking
Pcs/Ctn/G.W./Cuft
BulkCartridgelbkg
HT-6037 80 ml -- 1/8” 1000 psi 0.62 0.28 50/Ctn/15 kg/1.4’
HT-6038 -- 100 ml 1/8” 1000 psi 0.22 0.10 50/Ctn/12 kg/1.8’

AT-6036K

*1 Pc AT-6036 Grease Gun

*1 Pc Manual Operated Gun head

*1 Pc 1/4” Quick Coupler

*1 Pc Hose Fitting

*1 Pc Metallic Bend Spout

*1 Pc 9” High Pressure Nylon Hose
