Air Hydraulic Riveter

Air Hydraulic Riveter
Air Hydraulic Riveter
  • AT-6013
  • AT-6013A
  • AT-6016
  • AT-6017
  • AT-6216
  • AT-6217
  • AT-6315
  • AT-6317
  • AT-6318
  • AT-6319
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
Model No.Blind Rivet
Setting
Capacity
(inch)		Traction
Power		Stroke
Length		Overall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption
Per Rivet Cycle		Net WeightWorking Air
Pressure		Packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
lbskgsinchmminchmmscfml/minlbkgpsikg/cm²
AT-6013 5/32 900 410 0.79 20 6.5 165 1/4” 3/8” 0.021 0.6 2.0 0.9 90 6.3 10/Ctn/15 kg/1.5’ 1
AT-6013A 3/16 2000 910 0.83 21 8.5 216 1/4” 3/8” 0.034 0.95 3.0 1.4 90 6.3 10/Ctn/20 kg/2.0’ 1
AT-6016 3/16 1983 900 0.67 17 11.8 300 1/4” 3/8” 0.03 0.85 3.3 1.5 90 6.3 10/Ctn/22 kg/2.8’ 1
AT-6017 9/32 3124 1420 0.71 18 12.6 320 1/4” 3/8” 0.037 1.05 5.29 2.4 90 6.3 6/Ctn/22 kg/2.1’ 1
AT-6216 3/16 1983 900 0.63 16 8.9 225 1/4” 3/8” 0.03 0.85 3.2 1.47 90 6.3 10/Ctn/22 kg/3’ 1
AT-6217 1/4 3100 1413 0.75 19 10.2 260 1/4” 3/8” 0.035 1.0 4.4 2.0 90 6.3 6/Ctn/17 kg/2’ 1
AT-6315 3/16 1686 720 0.55 14 9.1 230 1/4” 3/8” 0.03 0.85 3.3 1.5 90 6.3 10/Ctn/19 kg/2.2’ 1
AT-6317 3/16 2000 910 0.59 15 11.4 290 1/4” 3/8” 4 113 3.26 1.48 90 6.3 10/Ctn/16 kg/3.3’ 1.5

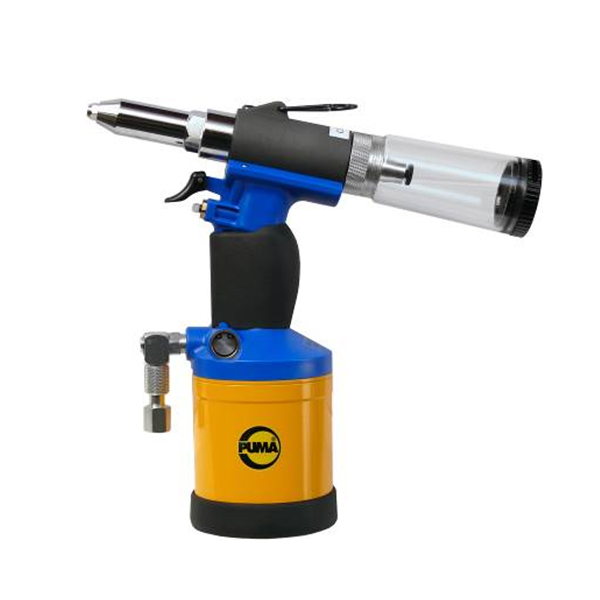

AT-6318 3/16 2000 910 0.93 23.5 11.4 290 1/4” 3/8” 4 113 3.41 1.55 90 6.3 10/Ctn/17 kg/3.3’ 1.5
AT-6319 1/4 3800 1723 0.89 22.5 12 305 1/4” 3/8” 4 113 3.97 1.8 90 6.3 10/Ctn/19.5 kg/3.3’ 1.5
