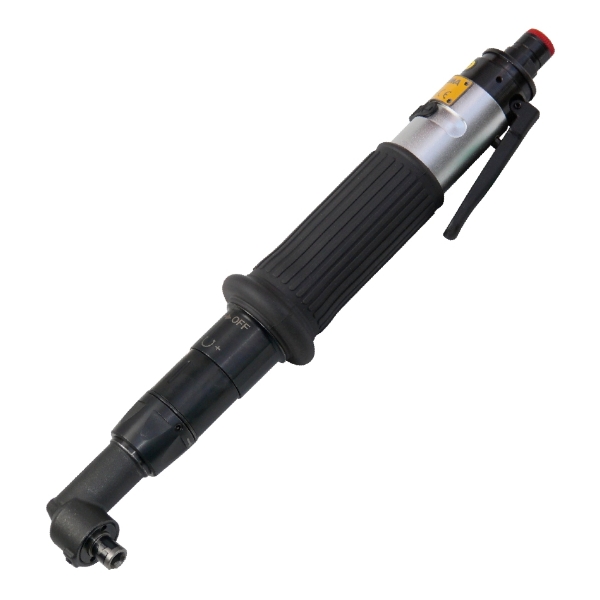

Air Shut-off Clutch Screwdriver Angle Type AirShut-off05

Model No.	Hex. shank size		Capacity bolt size	Free Speed RPM	Max. torque		Overall Length		Air Inlet (PT)	Air Hose (ID)	Avg. Air Consumption		Net Weight		Working Air Pressure		Sug. Air Comp. (HP)
Model No.	inch	mm	mm	Free Speed RPM	in-lb	N-m	inch	mm	Air Inlet (PT)	Air Hose (ID)	scfm	l/min	lb	kg	psi	kg/cm²	Sug. Air Comp. (HP)
AT-4016A15	1/4	6.35	M2	1500	2.7~7	0.3~0.8	11.18	284	1/8”	1/4”	5	142	0.88	0.4	70	5.0	2
AT-4016A11	1/4	6.35	M2	1100	3.5~8.8	0.4~1	11.18	284	1/8”	1/4”	5	142	0.88	0.4	70	5.0	2
AT-4017A16	1/4	6.35	M2~M3	1600	6.2~12	0.7~1.4	11.46	291	1/8”	1/4”	7	198	1.76	0.8	70	5.0	2
AT-4017A09	1/4	6.35	M3	900	9.7~18	1.1~2.1	11.46	291	1/8”	1/4”	7	198	1.76	0.8	70	5.0	2
AT-4018A17	1/4	6.35	M3	1700	8.8~25	1~2.8	12.64	321	1/4”	1/4”	8	226	2.42	1.1	85	6.0	2
AT-4018A11	1/4	6.35	M3~M4	1100	8.8~30	1~3.4	12.64	321	1/4”	1/4”	8	226	2.42	1.1	85	6.0	2
AT-4018A07	1/4	6.35	M3~M4	700	8.8~40	1~4.5	12.64	321	1/4”	1/4”	8	226	2.42	1.1	85	6.0	2
AT-4019A11	1/4	6.35	M4~M5	1100	22~52	2.5~5.9	12.68	322	1/4”	1/4”	9	255	2.42	1.1	85	6.0	2
AT-4019A07	1/4	6.35	M5	700	26.4~70	3~8	12.68	322	1/4”	1/4”	9	255	2.42	1.1	85	6.0	2
AT-4019A05	1/4	6.35	M6	550	26.4~96	3~10.9	12.68	322	1/4”	1/4”	9	255	2.42	1.1	85	6.0	2
