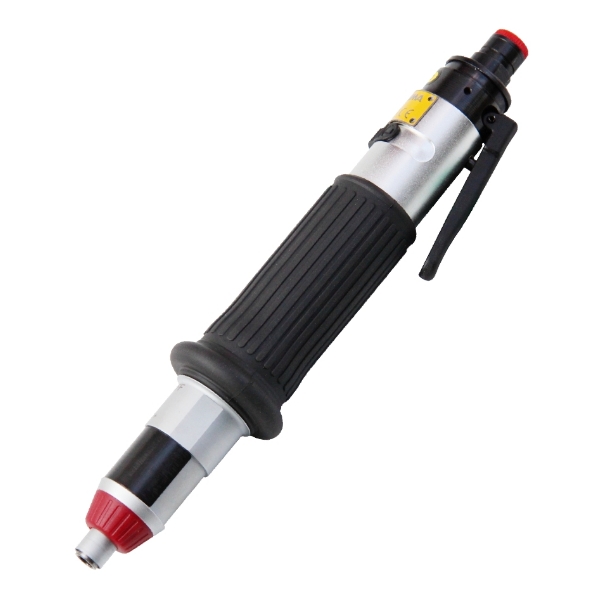

Air Shut-off Clutch Screwdriver Straight type (Lever Start)

Air Shut-off Clutch Screwdriver Straight type (Lever Start)
Air Shut-off Clutch Screwdriver Straight type (Lever Start)
  • AT-4016L15
  • AT-4016L11
  • AT-4017L16
  • AT-4017L09
  • AT-4018L17
  • AT-4018L11
  • AT-4018L07
  • AT-4019L17
  • AT-4019L11
  • AT-4019L07
  • AT-4019L05
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
Model No.Hex.
shank size		Capacity
bolt size		Free
Speed
RPM		Max.
torque		Overall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net
Weight		Working Air
Pressure		Sug.
Air
Comp.
(HP)
inchmmmmin-lbN-minchmmscfml/minlbkgpsikg/cm²
AT-4016L15 1/4 6.35 M2 1500 2.7~7 0.3~0.8 9.29 236 1/8” 1/4” 5 142 0.66 0.3 70 5.0 2
AT-4016L11 1/4 6.35 M2 1100 3.5~8.8 0.4~1 9.29 236 1/8” 1/4” 5 142 0.66 0.3 70 5.0 2
AT-4017L16 1/4 6.35 M2~M3 1600 6.2~12 0.7~1.4 9.61 244 1/8” 1/4” 7 198 1.32 0.6 70 5.0 2
AT-4017L09 1/4 6.35 M3 900 9.7~18 1.1~2.1 9.61 244 1/8” 1/4” 7 198 1.32 0.6 70 5.0 2
AT-4018L17 1/4 6.35 M3 1700 8.8~25 1~2.8 10.79 274 1/4” 1/4” 8 226 1.76 0.8 85 6.0 2
AT-4018L11 1/4 6.35 M3~M4 1100 8.8~30 1~3.4 10.79 274 1/4” 1/4” 8 226 1.76 0.8 85 6.0 2
AT-4018L07 1/4 6.35 M3~M4 700 8.8~40 1~4.5 10.79 274 1/4” 1/4” 8 226 1.76 0.8 85 6.0 2
AT-4019L17 1/4 6.35 M4 1700 17.6~38 2~4.3 10.67 271 1/4” 1/4” 9 255 1.76 0.8 85 6.0 2
AT-4019L11 1/4 6.35 M4~M5 1100 22~52 2.5~5.9 10.67 271 1/4” 1/4” 9 255 1.76 0.8 85 6.0 2
AT-4019L07 1/4 6.35 M5 700 26.4~70 3~8 10.67 271 1/4” 1/4” 9 255 1.76 0.8 85 6.0 2
AT-4019L05 1/4 6.35 M6 550 26.4~96 3~10.9 10.67 271 1/4” 1/4” 9 255 1.76 0.8 85 6.0 2
