Air Spin Pull Tool

Air Spin Pull Tool
Air Spin Pull Tool
  • AT-6105
  • AT-6105M
  • AT-6206
  • AT-6206M

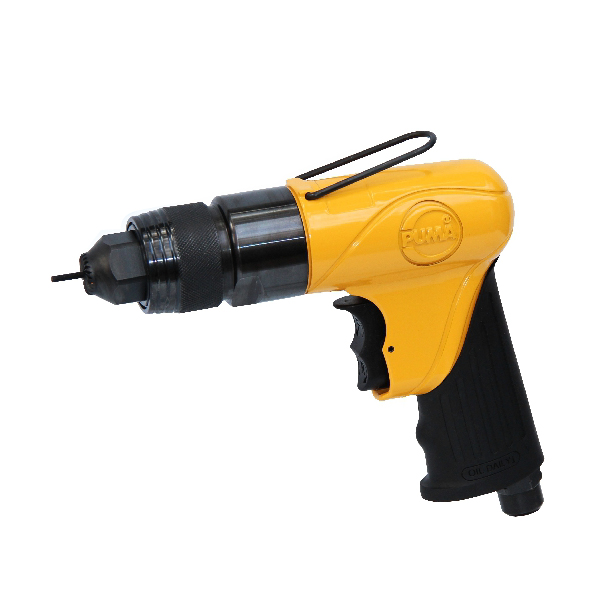

  • AT-6300A
  • AT-6300B
  • AT-6300C
  • AT-6301C
  • AT-6301D
  • AT-6301E
  • AT-6302D
  • AT-6302E
  • AT-6302F
  • AT-6303F
  • AT-6303G
  • AT-6300NB
  • AT-6300NC
  • AT-6301ND
  • AT-6301NE
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
Model No.Riveting
Nut
Capacity		Traction
Power		Stroke
Length		Overall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption
Per Rivet Cycle		Net WeightWorking Air
Pressure		Packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
lbskgsinchmminchmmscfml/minlbkgpsikg/cm²
AT-6105 #6~1/2” 6000 2722 0.276 7 10.94 278 1/4” 3/8” 0.074 2.1 5.07 2.3 85~95 6~6.7 5/Ctn/20 kg/2.8’ 1
AT-6105M M4~M12 6000 2722 0.276 7 10.94 278 1/4” 3/8” 0.074 2.1 5.07 2.3 85~95 6~6.7 5/Ctn/20 kg/2.8’ 1
AT-6206 #6~1/2” 4520 2050 0.256 6.5 12.2 310 1/4” 3/8” 0.265 7.5 5.29 2.4 70~100 5~7 2/Ctn/10.8 kg/2’ 1
AT-6206M M3~M12 4520 2050 0.256 6.5 12.2 310 1/4” 3/8” 0.265 7.5 5.29 2.4 70~100 5~7 2/Ctn/10.8 kg/2’ 1

Model No.Rivet Nut
Setting
Capacity		Free
Speed		Overall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net WeightWorking Air
Pressure		Packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug. Air
Comp.
(HP)
inchmmscfml/minlbkgpsikg/cm²
AT-6300A M3 2100 7.95 202 1/4” 3/8” 10 283 2.45 1.11 35~45 2.5~3.2 10/Ctn/13.8 kg /1.32’ 2
AT-6300B M4 2100 7.95 202 1/4” 3/8” 10 283 2.45 1.11 45~55 3.2~3.9 10/Ctn/13.8 kg /1.32’ 2
AT-6300C M5 2100 7.95 202 1/4” 3/8” 10 283 2.45 1.11 80~90 5.6~6.3 10/Ctn/13.8 kg /1.32’ 2
AT-6301C M5 800 9.17 233 1/4” 3/8” 10 283 2.89 1.31 45~55 3.2~3.9 10/Ctn/15.8 kg /1.32’ 2
AT-6301D M6 800 9.17 233 1/4” 3/8” 10 283 2.89 1.31 70~80 4.9~5.6 10/Ctn/15.8 kg /1.32’ 2
AT-6301E M8 800 9.17 233 1/4” 3/8” 10 283 2.89 1.31 80~90 5.6~6.3 10/Ctn/15.8 kg /1.32’ 2
AT-6302D M6 500 9.17 233 1/4” 3/8” 10 283 2.91 1.32 45~55 3.2~3.9 10/Ctn/15.8 kg /1.32’ 2
AT-6302E M8 500 9.17 233 1/4” 3/8” 10 283 2.91 1.32 60~70 4.2~4.9 10/Ctn/15.8 kg /1.32’ 2
AT-6302F M10 500 9.17 233 1/4” 3/8” 10 283 2.91 1.32 80~90 5.6~6.3 10/Ctn/15.8 kg /1.32’ 2
AT-6303F M10 350 9.17 233 1/4” 3/8” 10 283 2.91 1.32 65~75 4.6~5.3 10/Ctn/15.8 kg /1.32’ 2
AT-6303G M12 350 9.84 250 1/4” 3/8” 10 283 3.20 1.45 90~100 6.3~7.0 10/Ctn/17.3 kg /1.32’ 2
AT-6300NB M4 2100 7.05 179 1/4” 3/8” 10 283 2.45 1.11 40~60 2.8~4.2 10/Ctn/13.8 kg /1.32’ 2
AT-6300NC M5 2100 7.05 179 1/4” 3/8” 10 283 2.45 1.11 65~90 4.6~6.3 10/Ctn/13.8 kg /1.32’ 2
AT-6301ND M6 800 8.27 210 1/4” 3/8” 10 283 2.89 1.31 60~70 4.2~5.0 10/Ctn/15.8 kg /1.32’ 2
AT-6301NE M8 800 8.27 210 1/4” 3/8” 10 283 2.89 1.31 65~90 4.6~90 10/Ctn/15.8 kg /1.32’ 2
