Auto Shut-off Open-end Wrench

Auto Shut-off Open-end Wrench
Auto Shut-off Open-end Wrench
  • AT-5210NA
  • AT-5210NB
  • AT-5211NA
  • AT-5211NB
  • AT-5210RA
  • AT-5210RB
  • AT-5211RA
  • AT-5211RB
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

Non- Reversing Type

Model No.Free
Speed		Torque RangeSocket SizeNet WeightAir Inlet
(PT)		Air Hose
(ID)

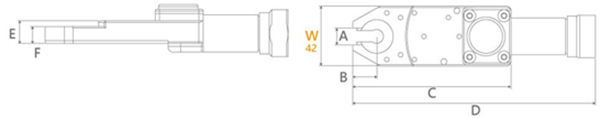

mm		Head Size
ABCDEF
ft-lbNmlbkgmmmmmmmmmmmm
AT-5210NA 230 2.2~5.9 3~8 6,8,9,10,11,12 4.4 2.0 1/4” 8 12 17.3 112.9 172.6 16 10
AT-5210NB 230 3.7~12.5 5~17 6,8,9,10,11,12 4.4 2.0 1/4” 8 12 17.3 112.9 172.6 16 10
AT-5211NA 230 3.7~12.5 5~17 13,14 4.8 2.2 1/4” 8 19 17 123.2 177 16 12
AT-5211NB 170 5.2~17.7 7~24 15,17,19,21,22 4.8 2.2 1/4” 8 19 17 123.2 177 16 12

Fastening & Reversing Type

Model No.Free
Speed		Torque RangeSocket SizeNet WeightAir Inlet
(PT)		Air Hose
(ID)
mm		Head Size
ABCDEF
ft-lbNmlbkgmmmmmmmmmmmm

AT-5210RA

 230 2.2~5.9 3~8 6,8,9,10,11,12 4.4 2.0 1/4” 8 12 17.3 112.9 172.6 16 10

AT-5210RB

 230 3.7~12.5 5~17 6,8,9,10,11,12 4.4 2.0 1/4” 8 12 17.3 112.9 172.6 16 10

AT-5211RA

 230 3.7~12.5 5~17 13,14 4.8 2.2 1/4” 8 19 17 123.2 177 16 12

AT-5211RB

 170 5.2~17.7 7~24 15,17,19,21,22 4.8 2.2 1/4” 8 19 17 123.2 177 16 12
views/proimages/pd-en/PIC-1980/14-18Air_Ratchet_Wrench/P17_AT-5210(1).jpg

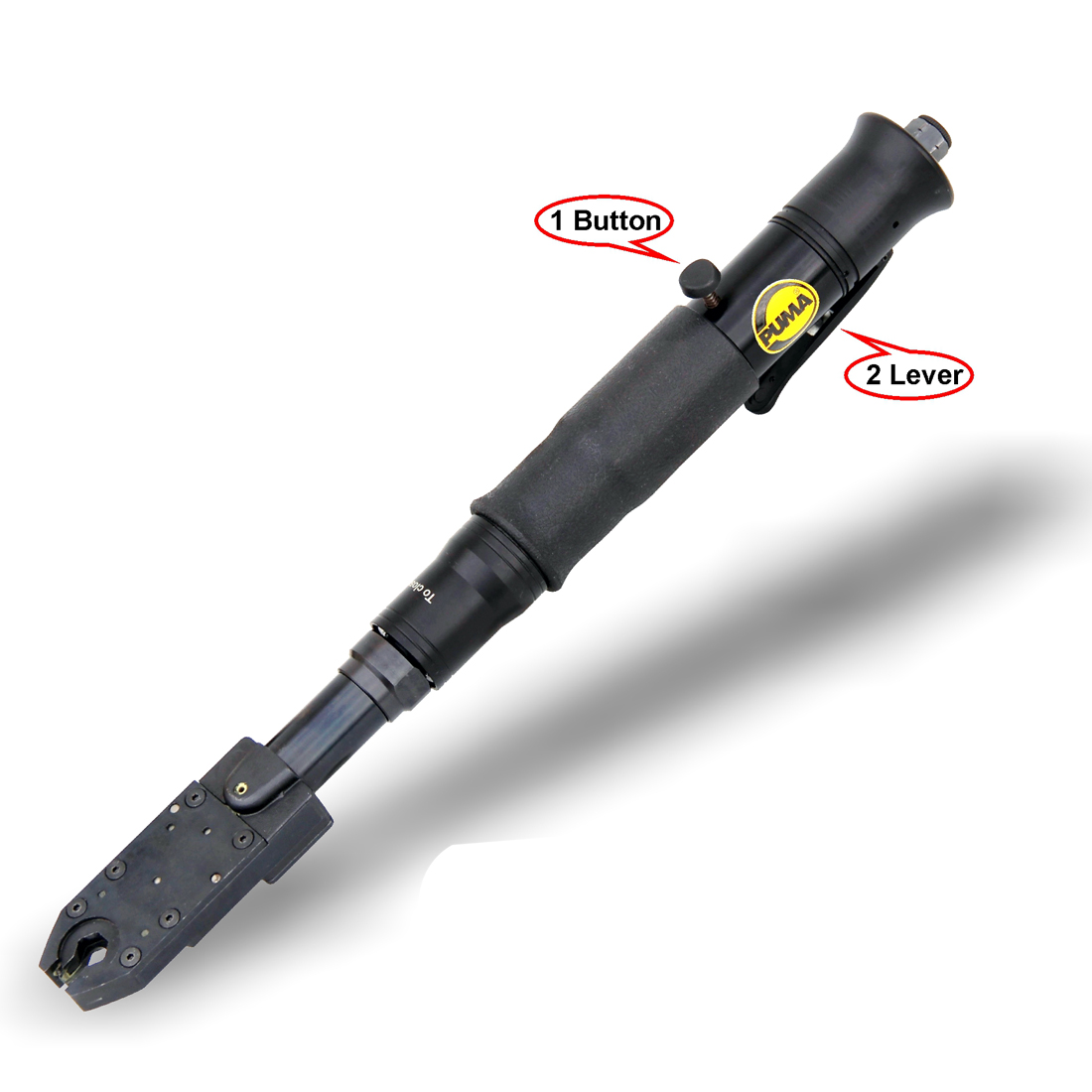

One Step Operation

  • Press (1) and (2) together for operation
  • Press (1) and (2) together for operation

Easy Torque Adjustment

External torque adjustment design allow end-user to “roughly adjust” the tools to the desired torque


Partial through & through type of gear sockets are available upon request for more application requirements.

Gear with lip to prevent disengagement from the nut.

Small head design offers better access to hard-to-reach work spaces.
