BE,BT PUMP Series (Single,Two Stage Belt Drive Series)

BE5
BE,BT PUMP Series (Single,Two Stage Belt Drive Series)
  • BE1
  • BE2
  • BE3
  • BE4
  • BE5
  • BE7A
  • BE10
  • BE15
  • BT5
  • BT7A
  • BT10
  • BT15
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04MAX-RPM.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06WORK.pngviews/proimages/pd-en/title/09Lbs.pngviews/proimages/pd-en/title/10cm.png
BE1 1.0/0.75 140/4.9 740 2 8/115 17/38 36×25×32
BE2 2.0/1.50 270/9.5 880 2 8/115 22/48 37×26×35
BE3 3.0/2.20 420/14.8 880 3 8/115 25/55 43×28×35
BE4 4.0/3.00 530/18.7 880 2 8/115 37/81 47×30×45
BE5 5.0/3.75 705/24.9 780 3 8/115 49/108 50×36×47
BE7A 7.5/5.50 960/33.9 775 3 8/115 61/134 56×34×52

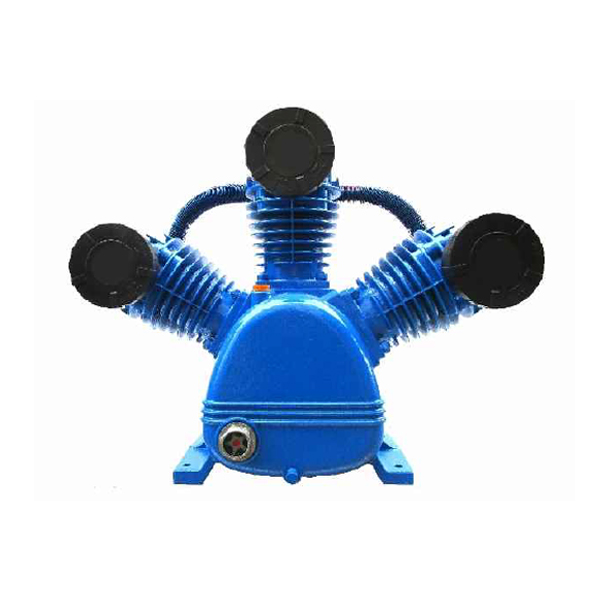

BE10 10.0/7.50 1390/49.1 735 3 8/115 101/222 66×44×54
BE15 15.0/11.00 1930/68.2 800 4 8/115 130/287 80×50×60
BT5 5.0/3.75 450/15.9 740 3 12/175 50/110 51×39×46
BT7A 7.5/5.50 645/22.8 780 3 12/175 58/127 53×38×50
BT10 10.0/7.50 925/32.7 735 3 12/175 108/237 66×46×53
BT15 15.0/11.00 1340/47.3 740 4 12/175 132/291 80×50×60
