Basic Series Direct Drive
 |  |  |  |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|---|---|---|
| OFA32C | 0.25/0.18 | 32/1.1 | 2850 | 1 | 8/115 | 10/150 | 4 | 9.9 | 37×36×32 | Oil-less |
| OFA45C | 0.50/0.37 | 45/1.6 | 2850 | 1 | 8/115 | 10/150 | 4 | 9.9 | 37×36×32 | Oil-less |
| OFG90 | 1.00/0.75 | 90/3.2 | 2850 | 1 | 8/115 | 10/150 | 6 | 15.0 | 49×21×44 | Oil-less |
| OFS90 | 1.00/0.75 | 90/3.2 | 1450 | 1 | 8/115 | 10/150 | 8 | 19.0 | 41×35×37 | Oil-less |
| OFG140A | 1.50/1.12 | 140/5.0 | 2850 | 1 | 8/115 | 10/150 | 5 | 17.0 | 40×40×37 | Oil-less |
| OFA140 | 1.50/1.12 | 140/5.0 | 2850 | 1 | 8/115 | 10/150 | 23 | 24.0 | 57×34×58 | Oil-less |

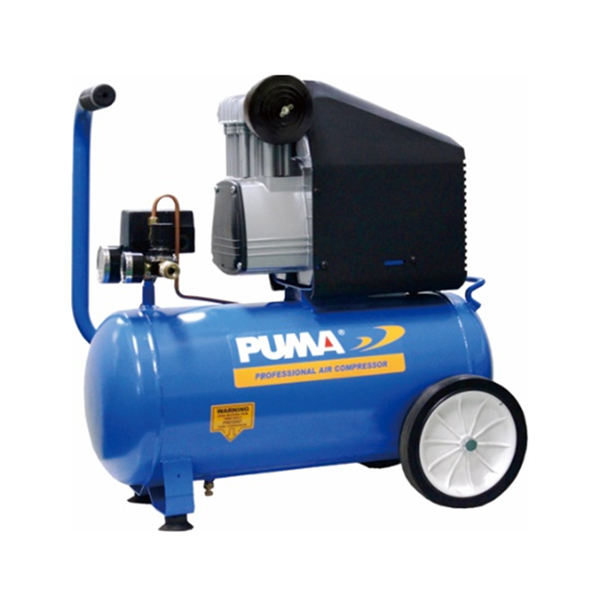

| OF230 | 2.00/1.50 | 230/8.2 | 2850 | 1 | 8/115 | 10/150 | 23 | 27.0 | 58×34×60 | Oil-less |
| NE130 | 1.50/1.12 | 130/4.6 | 2850 | 1 | 8/115 | 10/150 | 11 | 18.0 | 54×26×52 | Lubricated |
| NE210 | 2.00/1.50 | 210/7.5 | 2850 | 1 | 8/115 | 10/150 | 23 | 27.0 | 58×31×61 | Lubricated |
- Fully automatic operation with pressure switch and relief valve.
- Pressure regulator for controlled working pressure.
- Fitted with suction feet for maximum stability.
- Air outlet with quick couplings for easy connection of compressed air devices.
- Die cast aluminum pump with cast iron sleeve.
- Thermal overload protection.
- All oil-less compressors are maintenance free (no oil change, no oil in the condensate) and can be transported both vertically and horizontally.
- Built according to CE guidelines.
- Can be made according to RoHS directives.
