Coil Nailer CoilNailer

Model	Fastener			Tool Specification								Load Capacity
	Head Dia.	Shank Dia. Inch (mm)	Length Inch (mm)	Length		Height		Weight		Pressure
	mm	Shank Dia. Inch (mm)	Length Inch (mm)	mm	inch	mm	inch	kg	lb	psi	kg/cm²
AT-3090	10	0.122”(3.1)	3/4”(19)~1-3/4”(45)	300	11.8	255	10.0	2.4	5.3	70-110	5-7.5	200~300

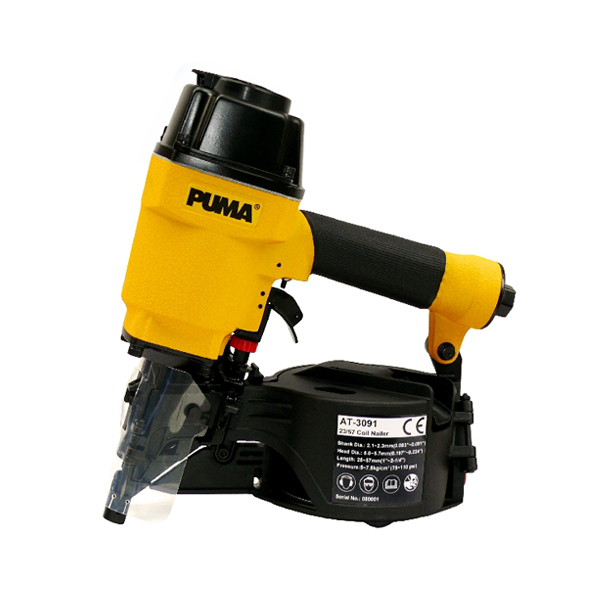

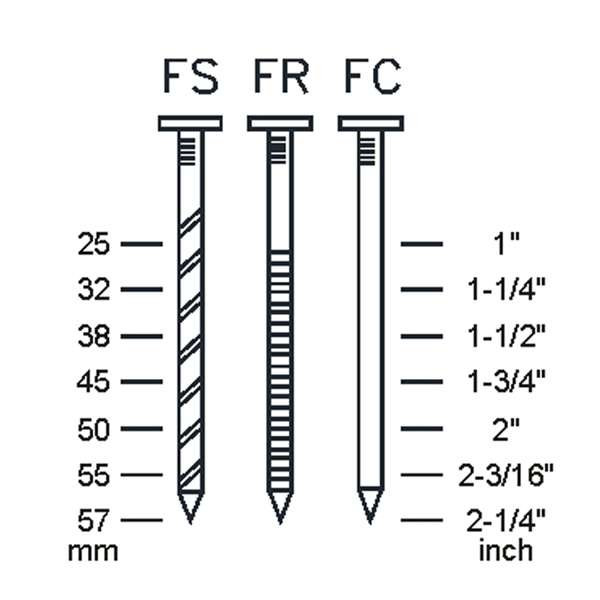

AT-3091	5.0~6.0	0.083”(2.1)~0.091”(2.3)	1”(25)~2-1/4”(57)	300	11.8	310	12.2	2.2	4.9	70-110	5-7.5	200~300
AT-3092	5.7~7.0	0.091”(2.3)~0.11”(2.9)	1-3/4”(45)~3”(75)	315	12.4	340	13.4	3.86	8.5	70-110	5-7.5	150~300
AT-3093	5.0~6.0	0.091”(2.3)~0.099”(2.5)	1-1/4”(32)~2-1/2”(65)	300	11.8	330	13.0	2.3	5.1	70-110	5-7.5	200~300
AT-3094	6.0~7.2	0.099”(2.5)~0.131”(3.3)	2”(50)~3-1/2”(90)	320	12.6	370	14.6	4.1	9.0	70-110	5-7.5	150~300
AT-3291	6.0~7.2	0.099”(2.5)~0.131”(3.3)	2”(50)~4”(100)	380	15.0	390	15.4	5.3	11.7	70-110	5-7.5	200~300
AT-3292	7.5~8.6	0.12”(3.05)~0.15(3.8)	3”(75)~5-1/8”(130)	360	14.2	467	18.4	6.4	14.1	70-110	5-7.5	120~225

Features	Application
Strong and lightweight die casting body. 360° adjustable exhaust port. Fast, Easy top loading. Contact trip safety.	Roofing felt Upholstery panels Create pallet Sheathing Wood assembly
