Cut-off Tool And Nibbler

Cut-off Tool And Nibbler
Cut-off Tool And Nibbler
  • AT-6027
  • AT-6126
  • AT-6127
  • AT-6128
  • AT-6220

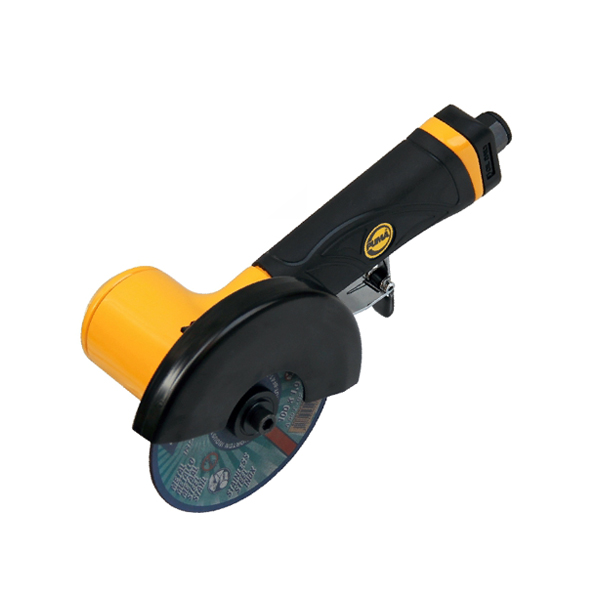

  • AT-6221
  • AT-6222
  • AT-6025
  • AT-6026
  • AT-6123
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
Model No.Cutting Wheel
Dia.		Free
Speed
RPM		Overall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net WeightWorking Air
Pressure		Packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug. Air
Comp.
(HP)
inchmminchmmscfml/minlbkgpsikg/cm²
AT-6027 3×1/16×3/8 75×1.6×9.5 20000 9.36 187 1/4” 3/8” 10 283 1.72 0.78 90 6.3 20/Ctn/18 kg /1.34’ 2
AT-6126 3×1/16×3/8 75×1.6×9.5 20000 7.09 180 1/4” 3/8” 10 283 1.85 0.84 90 6.3 10/Ctn/10 kg /1.0’ 2
AT-6127 4×1/16×3/8 100×1.6×9.5 15000 16.7 420 1/4” 3/8” 10 283 3.7 1.68 90 6.3 10/Ctn/18 kg /1.7’ 2
AT-6128 4x5/64x51/64 100x2.0x20 8000 9.37 238 1/4” 3/8” 9 255 2.71 1.23 90 6.3 10/Ctn/17 kg /2.0’ 2
AT-6220 3×1/16×3/8 75×1.6×9.5 18000 8.86 225 1/4” 3/8” 10 283 1.83 0.83 90 6.3 20/Ctn/18 kg /1.4’ 2
AT-6221 4×1/16×3/8 100×1.6×9.5 13000 9.45 240 1/4” 3/8” 12 340 2.05 0.93 90 6.3 20/Ctn/19.6 kg /2.0’ 3
AT-6222 4.5×1/16×7/8 115×1.6×22.2 13000 9.45 240 1/4” 3/8” 12 340 2.05 0.93 90 6.3 20/Ctn/19.6 kg /2.0’ 3

Model No.Cutting Capacity
(mm)		Stroke
Per
Minute (B.P.M.)		Overall
Length		Air
Inlet
(PT)		Air
Hose
(ID)		Avg. Air
Consumption		Net WeightWorking Air
Pressure		Packing
Pcs/Ctn/G.W./Cuft
(kg)		Sug.
Air
Comp.
(HP)
SteelAluminchmmscfml/minlbkgpsikg/cm²
AT-6025 1.4 1.6 2900 7.09 180 1/4” 3/8” 9.5 269 2.16 0.98 90 6.3 20/Ctn/21 kg/1’ 2
AT-6026 1.4 1.6 3200 8.27 210 1/4” 3/8” 8.5 241 1.76 0.8 90 6.3 20/Ctn/20 kg/1.2’ 2
AT-6123 1.4 1.6 3500 7.68 195 1/4” 3/8” 10 283 2.05 0.93 90 6.3 20/Ctn/21 kg/1.2’ 2
