D.C. Direct Drive Oil-Less Series (12V, 24V)

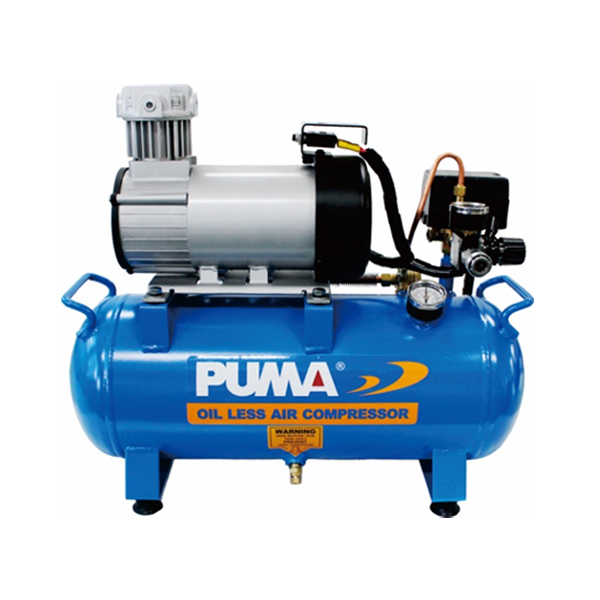

DC0715
D.C. Direct Drive Oil-Less Series (12V, 24V)
  • DC02
  • DC03A
  • DC05
  • DC07
  • DC1
  • PD11005
  • DC0504
  • DC0706
  • DC0715
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04MAX-RPM.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06-3WORK-Bar.pngviews/proimages/pd-en/title/07-3MAX-Bar.pngviews/proimages/pd-en/title/08-2AIR-l.pngviews/proimages/pd-en/title/09-2kg.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/13_12V24V.png
DC02 0.25/0.18 34/1.2 3000 1 8/115 10/150 - 2.6 22×10×16 18/9
DC03A 0.40/0.30 55/1.8 2750 1 8/115 10/150 - 5.0 30×12×18 28/14
DC05 0.50/0.37 66/2.3 2100 1 8/115 10/150 - 8.0 28×22×24 32/16
DC07 0.75/0.56 94/3.3 3000 1 8/115 10/150 - 8.0 28×22×24 45/23
DC1 1.00/0.75 130/4.6 3420 1 8/115 10/150 - 9.0 31×20×26 72/36
PD11005 0.25/0.18 34/1.2 3000 1 8/115 10/150 0.5 5.5 22×20×26 18/9
DC0504 0.50/0.37 66/2.3 2100 1 8/115 10/150 4.0 14.0 38×36×32 32/16
DC0706 0.75/0.56 94/3.3 3000 1 8/115 10/150 6.0 14.0 46×21×41 45/23
DC0715 0.75/0.56 94/3.3 3000 1 8/115 10/150 15.0 17.5 54×20×49 45/23

  • Oil-less design allows units to be mounted in any orientation.
  • Patented pump design for the provision of lowered noise and improved cooling.
  • Deep cooling fin design on cylinder head and cylinders for high efficiency cooling.
  • Oversized motor cooling fan prevent motor from overheating.
  • Continuous duty cycle for 1/2 to 1HP models, 50% duty cycle for 1/4HP models.
  • Ideal for off-road vehicles, RV, agriculture, construction, motorsports, and applications where on-board air is needed.
