D.C Direct Drive Oil-Less Series(12V,24V)

DC078
D.C Direct Drive Oil-Less Series(12V,24V)
  • DC02
  • DC05
  • DC07
  • DC1
  • DC02L
  • DC054
  • DC076
  • DC078
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04MAX-RPM.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06WORK.pngviews/proimages/pd-en/title/07MAX.pngviews/proimages/pd-en/title/08AIR-Gal.pngviews/proimages/pd-en/title/09Lbs.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/13_12V24V.png
DC02 0.25 / 0.18 34 / 1.2 3000 1 8 / 115 10 / 150 - 2.6 / 5.7 22x10x16 18 / 9
DC05 0.50 / 0.37 66 / 2.3 2100 1 8 / 115 10 / 150 - 8.0 / 17 .6 28x22x24 32 / 16
DC07 0.75 / 0.56 94 / 3 .3 3000 1 8 / 115 10 / 150 - 8 .0 / 17 .6 28x22x24 45 / 23
DC1 1.00 / 0.75 130 / 4 .6 3420 1 8 / 115 10 / 150 - 9.0 / 19 .8 31x22x24 72 / 36
DC02L 0.25 / 0.18 34 / 1.2 3000 1 8 / 115 10 / 150 0.5 / 0.1 5.5 / 12 .1 22x20x26 18 / 9
DC054 0.50 / 0.37 66 / 2.3 2100 1 8 / 115 10 / 150 4.0 / 1.0 14.0 / 30 .8 38x36x32 32 / 16
DC076 0.75 / 0.56 94 / 3 .3 3000 1 8 / 115 10 / 150 6.0 / 1.5 14 .0 / 30 .8 46x21x41 45 / 23

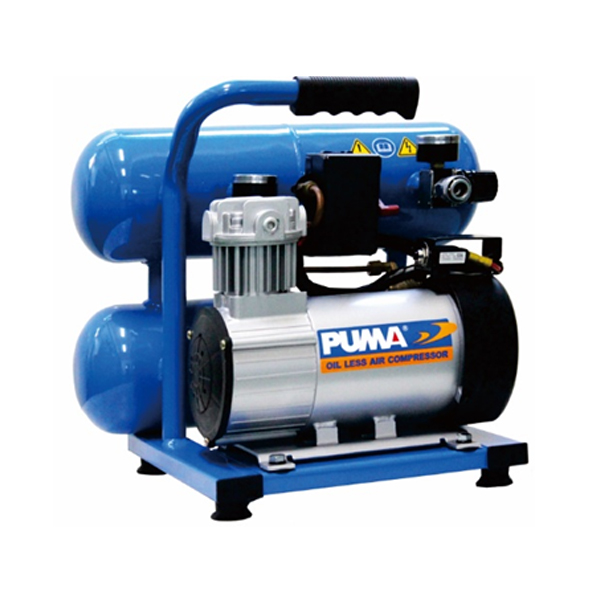

DC078 0.75 / 0.56 94 / 3 .3 2100 1 8 / 115 10 / 150 8.0 / 2.2 16.0 / 35.2 40x35x37 45 / 23
  • Oil-less design allows units to be mounted in any orientation.
  • Patented pump design for the provision of lowered noise and improved cooling.
  • Deep cooling fin design on cylinder head and cylinders for high efficiency cooling.
  • Oversized motor cooling fan prevent motor from overheating.
  • Continuous duty cycle for 1/2 to 1HP models, 50% duty cycle for 1/4HP models.
  • Ideal for off-road vehicles, RV, agriculture, construction, motorsports, and applications where on-board air is needed.
