Direct Drive Oil-Less Series

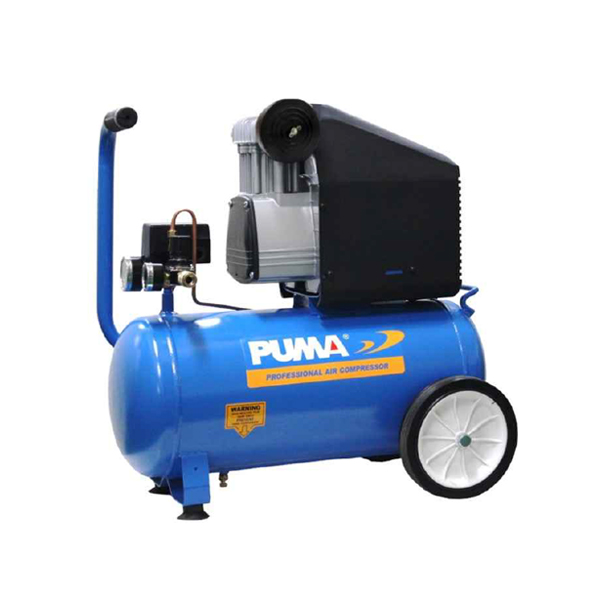

OF230
Direct Drive Oil-Less Series
  • OF024C
  • OF076
  • OF105
  • OF125
  • OF230
  • OF250A
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04MAX-RPM.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06WORK.pngviews/proimages/pd-en/title/07MAX.pngviews/proimages/pd-en/title/08AIR-Gal.pngviews/proimages/pd-en/title/09Lbs.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/11Old-Model.png

50Hz


OF024C 0.25 / 0.18 32 / 1.1 2850 1 8 / 115 10 / 150 4 / 1 .0 10 / 22 37x36x32 OF0204C
OF076 0.75 / 0.56 90 / 3.1 2850 1 8 / 115 10 / 150 6 / 1 .5 15 / 33 49x21x44 OF0706
OF105 1.00 / 0.75 140 / 4.9 2850 1 8 / 115 10 / 150 4 / 1 .0 19 / 41 40x40x37 OF1005
OF125 1.00 / 0.75 140 / 4.9 2850 1 8 / 115 10 / 150 24 / 6.3 25 / 55 60x28x58 OF1025
OF230 2.00 / 1.50 230 / 8.2 2850 1 8 / 115 10 / 150 27 / 7.0 27 / 60 66x28x66 OF2030
OF250A 2.50 / 1.90 266 / 9.4 2850 1 8 / 115 10 / 150 46 /12.0 41 / 90 68x32x70 OF2550

60Hz


OF024C 0.25 / 0.18 40 / 1.4 3450 1 8 / 115 10 / 150 4 / 1 .0 10 / 22 37x36x32 OF0204C
OF076 0.75 / 0.56 108 / 3.8 3450 1 8 / 115 10 / 150 6 / 1.5 15 / 33 49x21x44 OF0706
OF105 1.00 / 0.75 170 / 6.0 3450 1 8 / 115 10 / 150 4 / 1 .0 19 / 41 40x40x37 OF1005
OF125 1.00 / 0.75 170 / 6.0 3450 1 8 / 115 10 / 150 24 / 6.3 25 / 55 60x28x58 OF1025
OF230 2.00 / 1.50 280 / 9.9 3450 1 8 / 115 10 / 150 27 / 7.0 27 / 60 66x28x66 OF2030
OF250A 2.50 / 1.90 322 /11.4 3450 1 8 / 115 10 / 150 46 / 12 .0 41 / 90 68x32x70 OF2550

A：0.5 HP

  • Compact and portable designs.
  • Oil-less models feature patented pump design for lower noise and improved cooling.
  • Maintenance-free on oil-less units.
  • All models are equipped with induction motors with overload protection.
  • Ideal for home and professional applications.
