Framing Nailer FramingNailer

Model	Fastener				Tool Specifications								Load Capacity
	Head	Shank Dia. Inch (mm)	Length Inch (mm)	Angle	Length		Height		Weight		Pressure
	Head	Shank Dia. Inch (mm)	Length Inch (mm)	Angle	mm	inch	mm	inch	kg	lbs	psi	kg/cm²

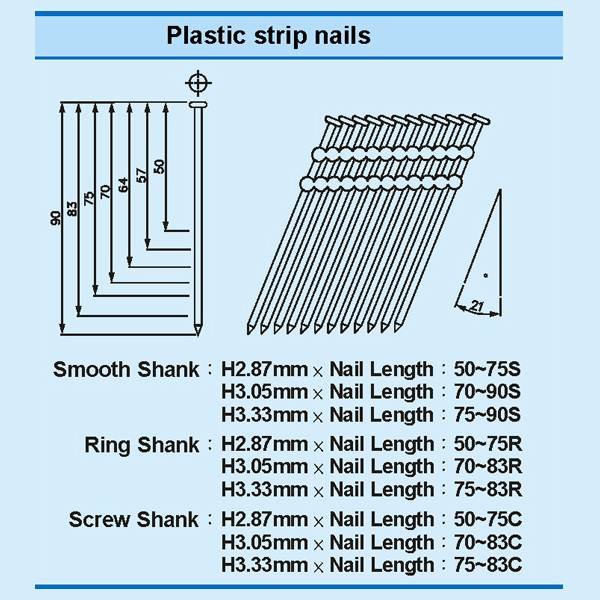

AT-3095PH	Round	0.113(2.87)~0.131(3.33)	2”(50)~3-1/2”(90)	21º	545	21.46	350	13.78	3.7	8.14	70-110	5-7.5	56~70
AT-3095	Clipped	0.113(2.87)~0.131(3.33)	2”(50)~3-1/2”(90)	28º	478	18.82	350	13.78	3.7	8.14	70-110	5-7.5	75~105
AT-3095PA	Clipped	0.113(2.87)~0.131(3.33)	2”(50)~3-1/2”(90)	34º	468	18.43	350	13.78	3.7	8.14	70-110	5-7.5	75~105

Features	Application
Narrow nose for accurate fastener placement. Strong and lightweight magnesium die casting body. Contact trip safety Ergonomic/ overmolded cushion handle grip. Fast Top loading	Framing Decking Strapping Subflooring Sheathing & exterior Trusses & bridging
