Impact Bit Socket

Impact Bit Socket
Impact Bit Socket
  • 3/8” Drive Hex. Impact socket

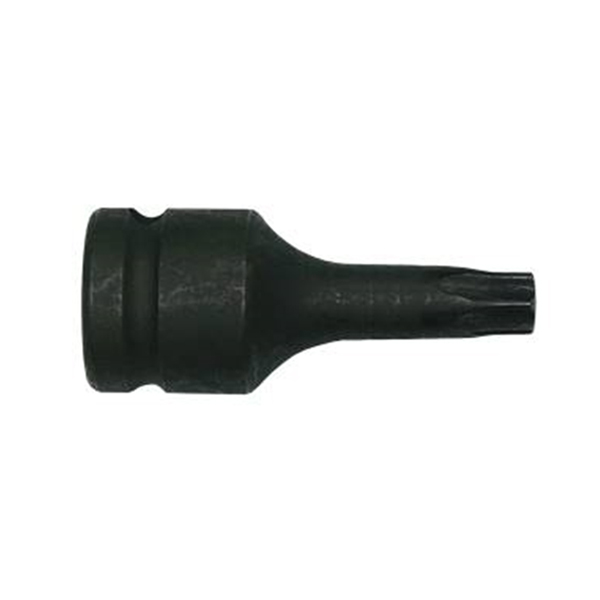

  • 3/8” Drive Torx impact socket
  • 1/2” Drive Hex. Impact socket
  • 1/2” Drive Torx impact socket
  • 1/2” Drive Deep Hex. Impact socket
  • 1/2” Drive Deep Torx impact socket
  • 3/4” Drive Hex. Impact socket
  • 3/4” Drive Torx impact socket
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

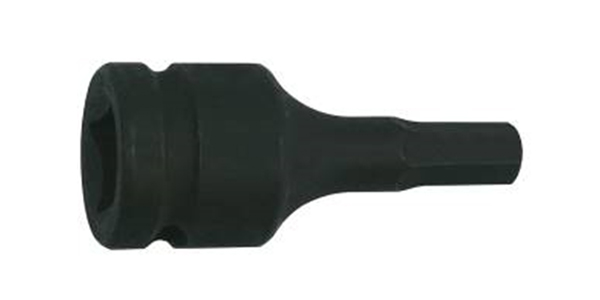

3/8” Drive Hex. Impact socket
(DIN 3129. CR-MO)

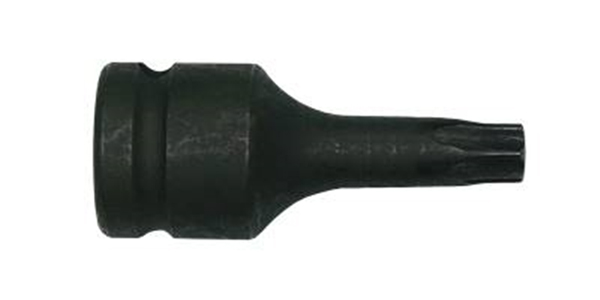

views/proimages/pd-en/PIC-1980/19-22Impact_Socket_Set/P21_IMPACT-SOCKET(1).jpg		 3/8” Drive Torx impact socket
(DIN 3129. CR-MO)
views/proimages/pd-en/PIC-1980/19-22Impact_Socket_Set/P21_IMPACT-SOCKET(2).jpg
Model No.Size (mm)D (mm)L (mm)Wt. (g)Model No.Size (mm)D (mm)L (mm)Wt. (g)
D03H-04M 4 52 20 55 D03TR-20M T-20 52 20 55
D03H-05M 5 52 20 57 D03TR-25M T-25 52 20 56
D03H-06M 6 52 20 60 D03TR-27M T-27 52 20 56
D03H-07M 7 52 20 63 D03TR-30M T-30 52 20 58
D03H-08M 8 52 20 67 D03TR-40M T-40 52 20 61
D03H-10M 10 52 20 74 D03TR-45M T-45 52 20 64
D03H-12M 12 52 20 85 D03TR-50M T-50 52 20 67

1/2” Drive Hex. Impact socket
(DIN 3129. CR-MO)		 1/2” Drive Torx impact socket
(DIN 3129. CR-MO)
Model No.Size (mm)D (mm)L (mm)Wt. (g)Model No.Size (mm)D (mm)L (mm)Wt. (g)
D04H-04M 4 60 25 74 D04TR-25M T-25 60 25 75
D04H-05M 5 60 25 76 D04TR-27M T-27 60 25 76
D04H-06M 6 60 25 79 D04TR-30M T-30 60 25 77
D04H-08M 8 60 25 87 D04TR-40M T-40 60 25 80
D04H-10M 10 60 25 96 D04TR-45M T-45 60 25 88
D04H-12M 12 60 25 106 D04TR-50M T-50 60 25 93
D04H-14M 14 60 25 120 D04TR-55M T-55 60 25 101
D04H-16M 16 60 25 135 D04TR-60M T-60 60 25 111
D04H-17M 17 60 25 146 D04TR-70M T-70 60 25 122
D04H-19M 19 60 25 162
D04H-22M 22 60 25 185

1/2” Drive Deep Hex. Impact socket
(DIN 3129. CR-MO)		 1/2” Drive Deep Torx impact socket
(DIN 3129. CR-MO)
Model No.Size (mm)D (mm)L (mm)Wt. (g)Model No.Size (mm)D (mm)L (mm)Wt. (g)
D04HD-04M 4 78 25 78 D04TRD-25M T-25 78 25 79
D04HD-05M 5 78 25 81 D04TRD-27M T-27 78 25 80
D04HD-06M 6 78 25 86 D04TRD-30M T-30 78 25 81
D04HD-08M 8 78 25 100 D04TRD-40M T-40 78 25 84
D04HD-10M 10 78 25 114 D04TRD-45M T-45 78 25 92
D04HD-12M 12 78 25 132 D04TRD-50M T-50 78 25 96
D04HD-14M 14 78 25 155 D04TRD-55M T-55 78 25 110
D04HD-16M 16 78 25 180 D04TRD-60M T-60 78 25 128
D04HD-17M 17 78 25 191 D04TRD-70M T-70 78 25 145
D04HD-19M 19 78 25 216
D04HD-22M 22 78 25 255

3/4” Drive Hex. Impact socket
(DIN 3129. CR-MO)		 3/4” Drive Torx impact socket
(DIN 3129. CR-MO)
Model No.Size (mm)D (mm)L (mm)Wt. (g)Model No.Size (mm)D (mm)L (mm)Wt. (g)
D06H-14M 14 105 42 401 D06TR-70M T-70 105 42 400
D06H-17M 17 105 42 438 D06TR-80M T-80 105 42 420
D06H-19M 19 105 42 491 D06TR-90M T-90 105 42 440
D06H-22M 22 105 42 561 D06TR-100M T-100 105 42 490
D06H-24M 24 105 42 607
D06H-27M 27 105 42 687
