Nailer Nailer

Model	Fastener							Tool Specification								Magazine Capacity
	Gauge	Thickness		Width		Length		Length		Height		Weight		Pressure
	Gauge	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	kgs	lbs	psi	kg/cm²
AT-3011	18	1.0	0.04	1.25	0.05	10-32	3/8”-1-1/4”	235	9.3	190	7.5	1.1	2.42	60-100	4-7	100
AT-3012	18	1.0	0.04	1.25	0.05	15-50	5/8”-2”	243	9.6	247	9.7	1.42	3.13	60-100	4-7	100
AT-3014	18	1.0	0.04	1.25	0.05	20-57	3/4”-2-1/4”	250	9.8	247	9.7	1.5	3.31	60-100	4-7	100

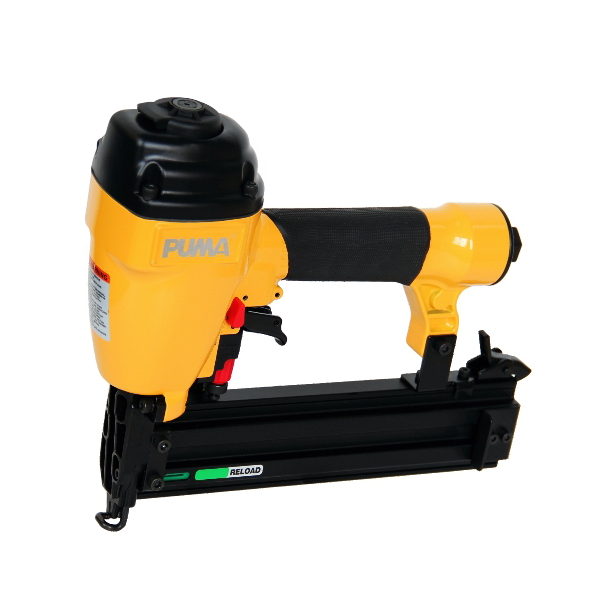

AT-3020	16	1.4	0.055	1.6	0.063	20-50	3/4”-2”	310	12.2	260	10.2	2.18	4.80	60-100	4-7	100
AT-3070	16	1.4	0.055	1.6	0.063	20-64	3/4”-2-1/2”	330	13.0	317	12.5	2.56	5.64	60-110	4-7.5	100
AT-3075S	15	1.8	0.07	1.8	0.07	32-64	1-1/4”-2-1/2”	300	11.8	310	12.2	2.29	5.0	70~110	5-7.5	100

Model	Fastener							Tool Specification								Magazine Capacity
	Gauge	Thickness		Width		Length		Length		Height		Weight		Pressure
	Gauge	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	kgs	lbs	psi	kg/cm²
AT-3015	18	1.0	0.04	1.25	0.05	20-50	3/4”-2”	265	10.4	247	9.7	1.4	3.09	60-100	4-7	100
AT-3016	18	1.0	0.04	1.25	0.05	10-32	3/8”-1-1/4”	263	10.4	200	7.9	1.16	2.56	60-100	4-7	100
AT-3080	13	2.5	0.098	2.5	0.098	25-64	1”-2-1/2”	305	12.0	305	12.0	2.35	5.18	60-100	4-7	80
AT-3081	-	2.2	0.087	26.4	1.04	9-15	3/8”-5/8”	380	15.0	288	11.3	2.74	6.04	60-100	4-7	180
AT-3082	--	2.2	0.087	25.4	1	9-15	3/8”-5/8”	380	15.0	288	11.3	2.74	6.04	60-100	4-7	160
AT-3084	23	0.64	0.025	0.64	0.025	12-22	1/2-7/8	225	8.86	152	5.98	1.0	2.2	60-90	4-6.3	200
AT-3086	23	0.64	0.025	0.64	0.025	12-30	1/2-1-1/4	227	8.9	186	7.3	0.86	1.9	60-100	4-7	200

Features	Application
Strong and lightweight die casting body. 360° adjustable exhaust port. Special hardened drive blade Adjustable depth control.	Window & door casing Exterior finish trim Crown moulding Decorative trim Cabinet face frames
