Belt Driven Type

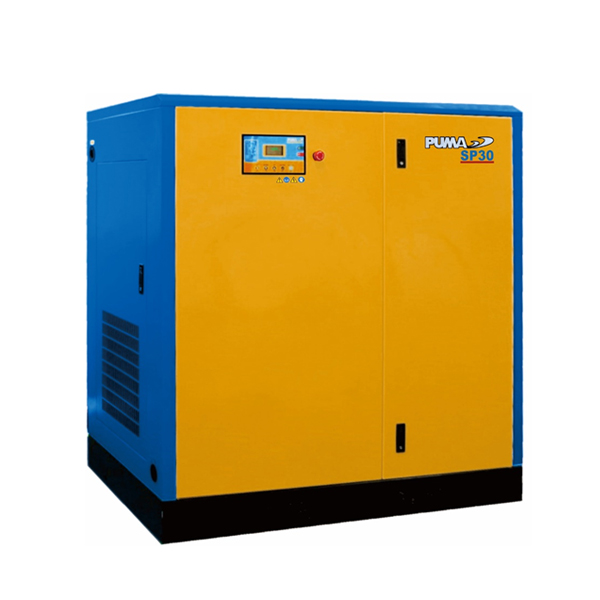

SP30

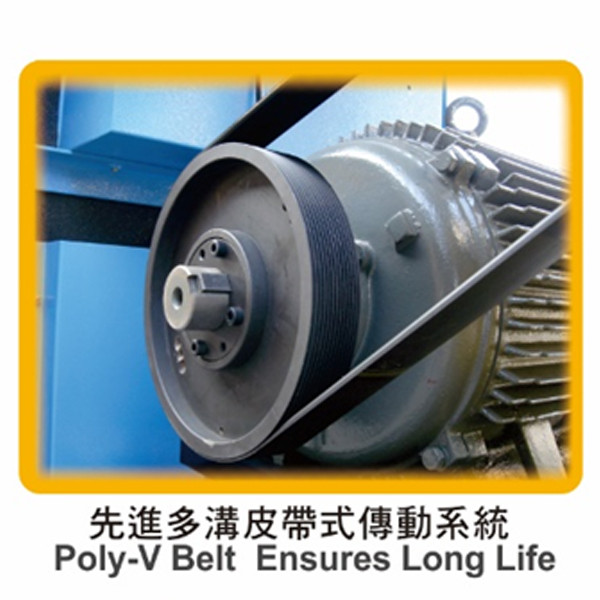

Poly-V Belt Ensures Long Life
Easy Maintenance Mechanism
Belt Driven Type
  • SP10
  • SP15
  • SP20
  • SP30
  • SP50
  • SP5S
  • SP7S
  • SP10S
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

BELT-DRIVEN TYPE

views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/06-2WORK.pngviews/proimages/pd-en/title/03-3AIR-M2-CFM.pngviews/proimages/pd-en/title/16Cooling.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/09-2kg.pngviews/proimages/pd-en/title/17dBA.pngviews/proimages/pd-en/title/18remark.png
SP10 10 7.5 8 1.15 / 40.60 Air 85*60*124 300 70 Tradition
10 1.02 / 35.90
13 0.86 / 30.20
SP15 15 11 8 1.69 / 59.50 Air 95*75*144 400 72 Tradition
10 1.51 / 53.40
13 1.30 / 45.80
SP20 20 15 8 2.16 / 76.00 Air 95*75*144 440 72 Tradition
10 1.90 / 67.00
13 1.60 / 57.00
SP30 30 22 8 3.43 / 121.00 Air 115*95*150 730 75 Tradition
10 2.91 / 103.00
13 2.30 / 81.00
SP50 50 37 8 5.43 / 192.00 Air 130*100*172 1040 78 Tradition
10 5.01 / 177.00
13 4.46 / 157.00
SP5S 5 3.7 10 0.41 / 14.5 Air 89*60*78 230 68 Compact
SP7S 7 5.5 10 0.68 / 24.00 Air 89*60*78 270 69 Compact
SP10S 10 7.5 10 0.96 / 33.9 Air 89*60*78 290 70 Compact
  • Electric Power: 3Ø, 220V/380V/440V (50/60HZ)
  • Starting Mode:
    380V/7.5-15KW → Direct Connect
    220V/11KW → Direct Connect
    220V/15KW ⇧ → Y-Δ Starting
    380V/22KW ⇧ → Y-Δ Starting
  • Max. Working Pressure: 13kg/cm²
  • Complete Cooling System, including air and lube oil.
