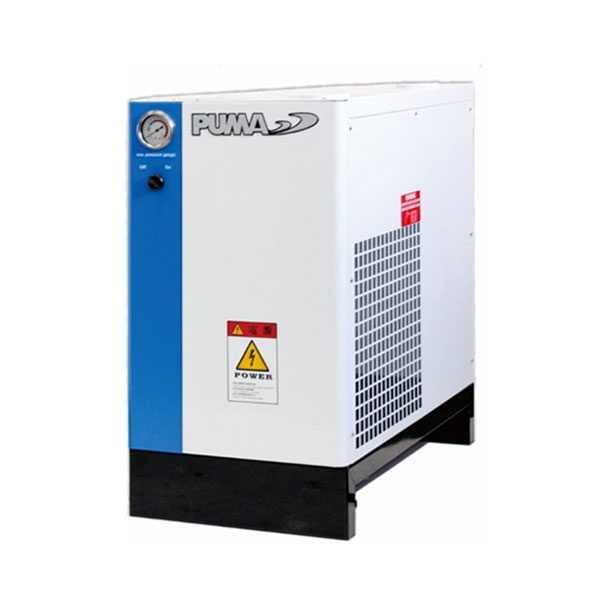

DR Series Refrigerated Air Dryer
DRH Series High Temperature Refrigerated Air Dryer
Refrigerated Air Dryer
  • DR05
  • DR10
  • DR15
  • DR20
  • DR30
  • DR50
  • DR75
  • DR100
  • DR150
  • DR200
  • DR250
  • DR300
  • DR400
  • DRH5
  • DRH10
  • DRH15
  • DRH20
  • DRH30
  • DRH50
  • DRH75
  • DRH100
  • DRH150
  • DRH200
  • DRH250
  • DRH300
  • DRH400
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart

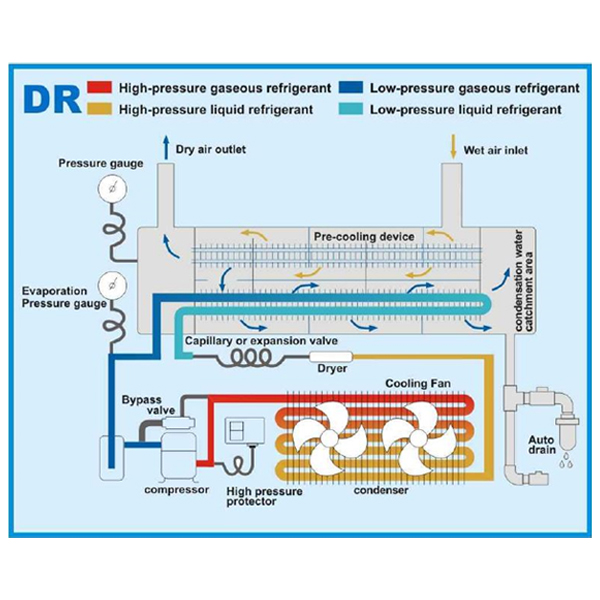

DR Series High Efficiency and Low Pressure Loss

Model NO. DR5 DR10 DR15 DR20 DR30 DR50 DR75 DR100 DR150 DR200 DR250 DR300 DR400
AIRNM³/min 0.6 1.3 1.8 2.8 4.2 7 10.6 14.5 21 26 31 38 49
SCFM 21 46 64 99 148 247 375 512 742 918 1095 1342 1730
Air Compressor(HP) 1-5 7.5-10 15 20 30 30-50 50-60 75 100 150 200 250 300
Inlet Temperature ≦45°C
Ambient Temperature ≦38°C
Dew Point 2-10°C (7Kg/cm²)
Working Pressure 7Kg/cm² Max. 10Kg /cm²
Refrigerant R134a R427a R-22
Refrigerate Compressor
(KW)		 0.2 0.4 0.5 0.5 0.7 1.4 1.5 2.0 3.1 4.5 5.1 5.9 5.9
Power 220V Single phase 　220V / 380V / 440V 3 phase
Connector Pipe Size 1/2" 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3"F 4"F 5"F
Dimensions
(mm)		H 390 600 600 650 755 780 1000 1000 1150 1200 1200 1400 1500
W 350 350 350 350 400 500 700 700 700 700 700 1700 1800
D 400 635 635 765 915 935 1165 1256 1465 1665 1665 915 950
Weight(kg) 22 31 32 50 74 116 214 239 319 370 390 480 590

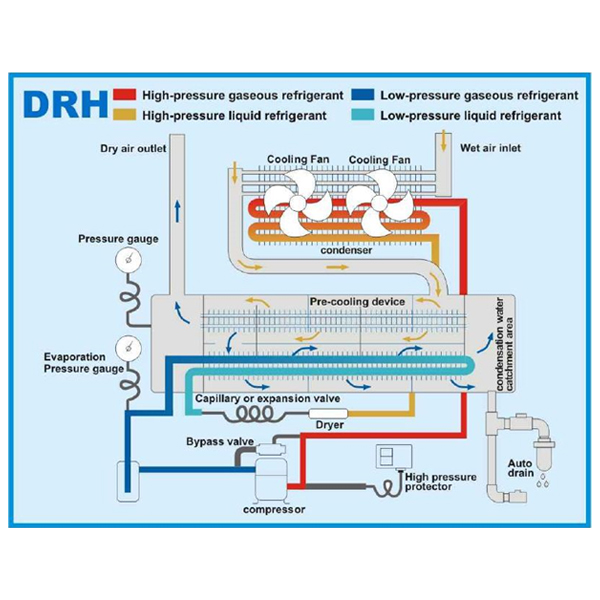

DRH Series High Temperature Air Inlet Application

Model NO. DRH5 DRH10 DRH15 DRH20 DRH30 DRH50 DRH75 DRH100 DRH150 DRH200 DRH250 DRH300 DRH400
AIRNM³/min 0.6 1.3 1.8 2.8 4.2 7 10.6 14.5 21 26 31 38 49
SCFM 21 46 64 99 148 247 375 512 742 918 1095 1342 1730
Air compressor(HP) 1-5 7.5-10 15 20 30 30-50 40-60 75 100 150 200 250 300
Inlet Temperature ≦80°C
Ambient Temperature ≦38°C
Dew Point 2-10°C (7Kg/cm²)
Working Pressure 7Kg/cm² Max. 10Kg /cm²
Refrigerant R134a R407c R-22
Refrigerate Compressor
(KW)		 0.2 0.4 0.5 0.5 0.7 1.4 1.5 2.0 3.1 4.5 5.1 5.9 5.9
Power 220V Single phase 　220V / 380V / 440V 3 phase
Connector Pipe Size 1/2" 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3"F 4"F 5"F
Dimensions
(mm)		H 450 600 600 755 755 780 1190 1200 1300 1400 1400 1650 1600
W 470 350 350 400 400 500 700 700 700 700 700 1700 2400
D 500 635 635 815 915 935 1165 1265 1465 1665 1665 900 950
Weight(kg) 31 32 33 58 80 118 238 259 378 446 451 570 890

  • New series DR refrigerated air dryers are suitable for maximum inlet temperature of 45°C that produce dry air with dew point 2°C at 7 kg/cm²
  • New series DR refrigerated air dryers have high efficiency and low pressure loss.
  • New series DRH refrigerated air dryers are suitable for maximum inlet temperature of 80°C. With the extra pre-cooler and strong cooling fan that cool down the high inlet air through the heat-exchanger to normal inlet temperature, it produces perfect dry air with dew point 2°C at 7 kg/cm²
