Riveting Hammer-Straight RivetingHammer-Straight

Model No.	Chisel shank		Piston Diameter		Piston Stroke		Blow per min. (B.P.M.)	Riveting capacity	Overall Length		Air Inlet (PT)	Air Hose (ID)	Avg. Air Consumption		Net Weight		Work Air Pressure		packing	Sug. Air
Model No.	inch	mm	inch	mm	inch	mm	Blow per min. (B.P.M.)	Riveting capacity	inch	mm	Air Inlet (PT)	Air Hose (ID)	scfm	l/min	lb	kg	psi	kg/cm²	packing	Sug. Air
AT-2210	0.315	8.0	0.39	10	1.22	31	5400	1.5	5.9	165	1/4”	1/4”	3	85	0.88	0.4	90	6.3	12/Ctn/5.3 kg/0.3’	1.5
AT-2214	0.401	10.2	0.56	14.3	1.97	50	2850	2.0	6.3	160	1/4”	3/8”	10	283	2.03	0.92	90	6.3	10/Ctn/14.5 kg/1.16’	3

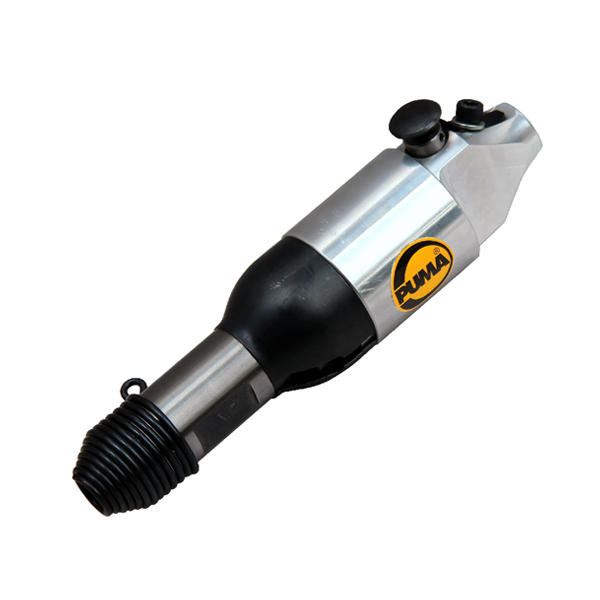

AT-2215	0.401	10.2	0.5	12.7	2.25	57.2	2580	2.4	8.46	215	1/4”	3/8”	10	283	2.34	1.06	90	6.3	10/Ctn/15.5 kg/1.16’	3
AT-2216	0.401	10.2	0.5	12.7	2.87	73	2160	4	9.09	231	1/4”	3/8”	10	283	2.56	1.16	90	6.3	10/Ctn/16.5 kg/1.16’	3
AT-2217	0.401	10.2	0.5	12.7	3.06	77.8	1740	4.8	10.08	256	1/4”	3/8”	10	283	2.80	1.27	90	6.3	10/Ctn/17.5 kg/1.16’	3
AT-2290	HEX. 7.9mm		1.18	30.0	1.0	25.0	--	--	10.0	254	1/4”	1/4”	0.65L/stroke		2.86	1.30	90	6.3	10/Ctn/14.5 kg/0.82’	1
AT-2291	HEX. 7.9mm		1.18	30.0	1.0	25.0	--	--	8.39	213	1/4”	1/4”	0.25L/stroke		1.98	0.9	90	6.3	10/Ctn/10.5 kg/0.82’	1
