Silent Belt Type Series

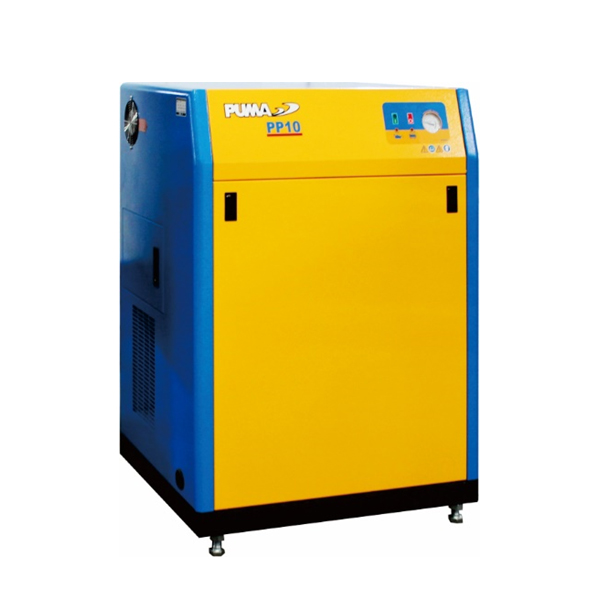

PP10

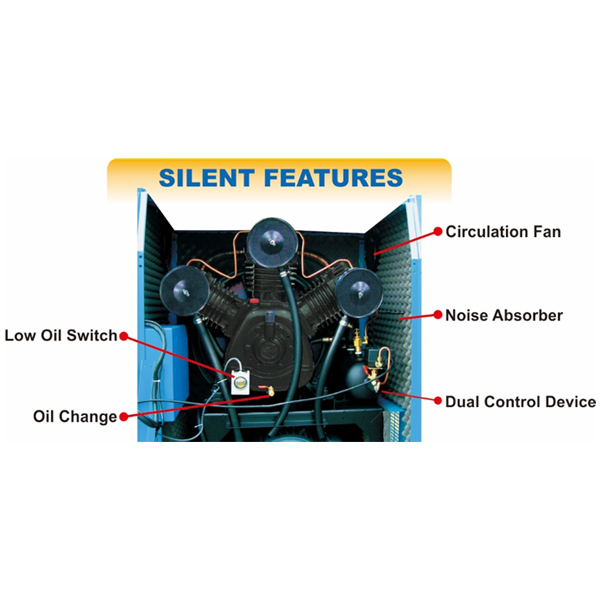

Silent Features
Silent Belt Type Series
  • PP1
  • PP2
  • PP3
  • PP5
  • PP7A
  • PP10
  • PP15
  • PP3T
  • PP5T
  • PP10T
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04MAX-RPM.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06-3WORK-Bar.pngviews/proimages/pd-en/title/07-3MAX-Bar.pngviews/proimages/pd-en/title/08AIR-Gal.pngviews/proimages/pd-en/title/09-2kg.pngviews/proimages/pd-en/title/10cm.png

Single Stage
PP1 1 .0 /  0.75 160/  5.6 830 2 8/115 10/150 4/1.0 142 65X61 X 95
PP2 2.0 / 1.50 255/  9.0 830 2 8/115 10/150 4/1.0 147 65X61 X 95
PP3 3.0 / 2.20 395/14 .0 650 2 8/115 10/150 4/1.0 210 80x74x 111
PP5 5.0 / 3.75 640/22.6 700 3 8/115 10/150 4/1.0 250 80x74x 111
PP7A 7.5/ 5.60 940/33.2 750 2 8/115 10/150 5/1.3 340 94x80x126
PP10 10.0/ 7.50 1300/45.9 690 3 8/115 10/150 5/1.3 390   94x80x126
PP15 15.0/11.2 1860/65.7 680 3 8/115 10/150 5/1.3 750 120x95x160

Two Stage
PP3T 3.0/ 2.20 250/ 8.8 850 2 12/175 16/225 4/1.0 215 80x74x111
PP5T 5.0/ 3.75 420/14.8 700 3 12/175 16/225 4/1.0 255 80x74x111
PP10T 10.0/ 7.50 860/30.4 680 3 12/175 16/225 5/1.3 395 94x80x126

Tank cap. is optional at customers request.

PP3 and above come with auto/semi-auto and low oil switch.

A：0.5HP

  • High quality industrial piston air compressor.
  • Noise reduction cabinet.
  • Using of air convection to obtain automatic cooling.
  • All models are equipped with automatic device for easy operation.
  • Oil-less and oil-lube available.
  • Oil-less type is with compact after cooler.
  • Built according to CE guidelines.
