Silent Type Series

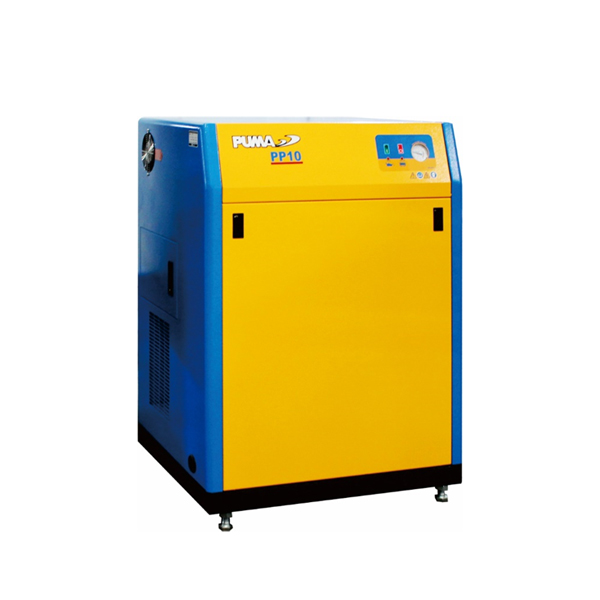

PP10 (NCS100A)

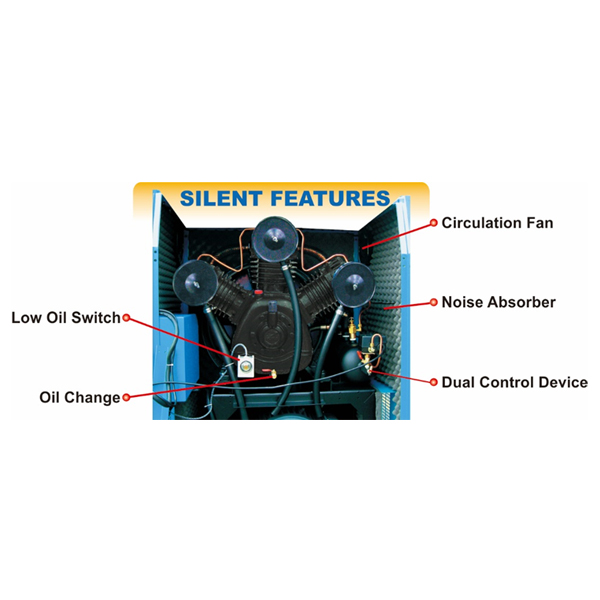

Silent Features
Silent Type Series
  • PP1
  • PP2
  • PP3
  • PP5
  • PP7A
  • PP10
  • PP15
  • PP3T
  • PP5T
  • PP10T
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03-4AIR-CFM-60HZ.pngviews/proimages/pd-en/title/04-2MAX-RPM-60HZ.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06WORK.pngviews/proimages/pd-en/title/07MAX.pngviews/proimages/pd-en/title/08AIR-Gal.pngviews/proimages/pd-en/title/09Lbs.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/11Old-Model.png

Single Stage


PP1 1 .0 /  0.75 185/  6.5 160/  5.6 980/830 2 8/115 10/150 4/1.0 142 / 312 65X61 X 95 NCS10A
PP2 2.0 / 1.50 300/10.6 255/  9.0 980/830 2 8/115 10/150 4/1.0 147/  324 65X61 X 95 NCS20A
PP3 3.0 / 2.20 460/16.0 395/14 .0 770/650 2 8/115 10/150 4/1.0 210/  462 80x74x 111 NCS30A
PP5 5.0 / 3.75 750/26.0 640/22.6 830/700 3 8/115 10/150 4/1.0 250/  550 80x74x 111 NCS50A
PP7A 7.5/ 5.60 1120/40.0 940/33.2 890/750 2 8/115 10/150 5/1.3 340/  748 94x80x126 NCS75A
PP10 10.0/ 7.50 1550/55.0 1300/45.9 820/690 3 8/115 10/150 5/1.3 390/   860   94x80x126 NCS100A
PP15 15.0/11.25 2200/77.6 1860/65.7 810/680 3 8/115 10/150 5/1.3 750/1650 120x95x160 NCS150A

Two Stage


PP3T 3.0/ 2.20 300/10.6 250/ 8.8 1010/850 2 12/175 16/230 4/1.0 215/ 473 80x74x111 TNCS30A
PP5T 5.0/ 3.75 500/17.7 420/14.8 830/700 3 12/175 16/230 4/1.0 255  / 562 80x74x111 TNCS50A
PP10T 10.0/ 7.50 1025/36.2 860/30.4 820/680 3 12/175 16/230 5/1.3 395  / 870 94x80x126 TNCS100A

Tank cap.& Two stage is optional at customers request.

PP3 and above come with auto/semi-auto and low oil switch.

A：0.5HP

Features:

  • Using completely enclosed box and the principle of air convection to obtain automatic cooling effect.
  • Equipped with automatic device for easy operation.
  • Handsomely designed and dust proof.

Usage:

  • Laboratories, dental clinics, cottage industries or places that require silence.
