Single Stage Belt Drive Series

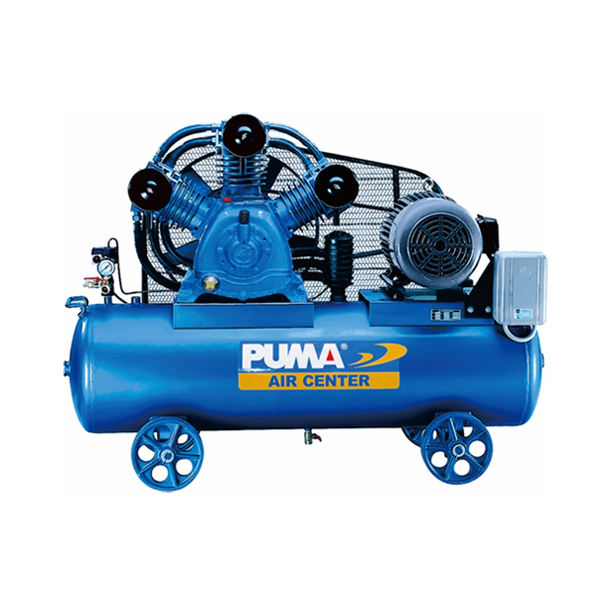

GE20300
Single Stage Belt Drive Series
  • GE160
  • GE290
  • GE3100
  • GE5120
  • GE7160A
  • GE10250
  • GE15300
  • GE20300
  • GE30500
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04-2MAX-RPM-60HZ.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06WORK.pngviews/proimages/pd-en/title/07MAX.pngviews/proimages/pd-en/title/08AIR-Gal.pngviews/proimages/pd-en/title/09Lbs.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/11Old-Model.png
GE160 1.0 / 0.75 140 / 5.0 900 1 8 / 115 10 / 150 58/15 71 /156 103x46x75 GE1060
GE290 2.0 / 1.50 215 / 7.6 1150 2 8 / 115 10 / 150 88/23 91/200 106x49x85 GE2090
GE3100 3.0 / 2.20 350 / 12.4 1150 2 8 / 115 10 / 150 95/25 98/215 117x49x85 GE30100
GE5120 5.0 / 3.75 645 / 22.7 1070 2 8 / 115 10 / 150 110 /30 155/341 132x53x96 GE50120
GE7160A 7.5 / 5.60 965 / 34.1 1070 3 8 / 115 10 / 150 155/40 220/484 155x53x106 GE75160
GE10250 10 / 7.50 1210 / 42.8 960 2 8 / 115 10 / 150 228/60 311/684 161x70x115 GE100250
GE15300 15 / 11.2 1680 / 59.2 890 3 8 / 115 10 / 150 285/75 408/897 191x76x121 GE150300
GE20300 20 / 15 .0 2325 / 82.1 690 3 8 / 115 10 / 150 285/ 75 556/1223 191x75x142 GE200300
GE30500 30 / 22 .0 3220 / 114.0 740 4 8 / 115 10 / 150 475/125 651/1432 201x84x144 GE300500

Semi-Auto type is to add "U" in no. eg. GUE5120 is semi-auto.

Tank cap. is optional at customers request.

A：0.5HP

Features:

The new single body valve design can increase compression efficiency and make maintenance very convenient. By adopting the most superior cast iron material, this air compressor is designed for industry use thus it is super water resistant. With the multi-blade heat dissipating fan, forced cooling, the heat dissipating system of this compressor is considered the best.

Usage:

Suitable for use in factories, automatic systems, auto service, finishing and any works requiring compressed air.
