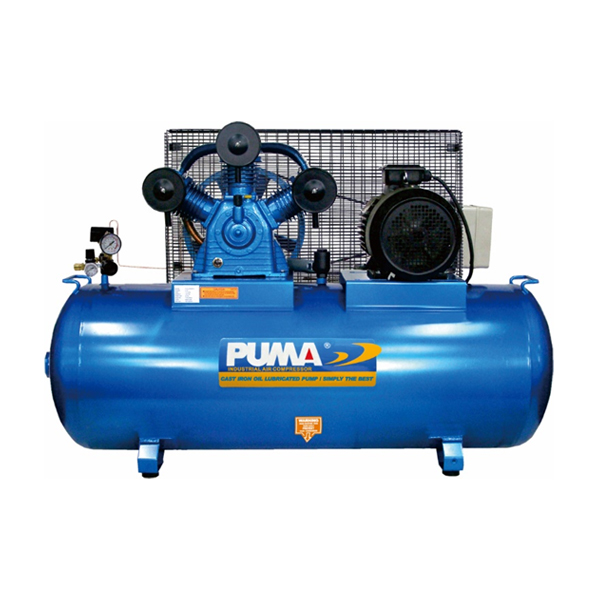

Single Stage Belt Drive Series

CE150500
Single Stage Belt Drive Series
  • CE2050
  • CE30100
  • CE40100
  • CE50200
  • CE75270
  • CE100500
  • CE150500
  • CE200500
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04MAX-RPM.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06-3WORK-Bar.pngviews/proimages/pd-en/title/07-3MAX-Bar.pngviews/proimages/pd-en/title/08-2AIR-l.pngviews/proimages/pd-en/title/09-2kg.pngviews/proimages/pd-en/title/10cm.png
CE2050 2.0/1.5 250/8.84 1220 1 8/115 10/150 50 75 79×33×68
CE30100 3.0/2.2 330/11.66 1350 2 8/115 10/150 95 103 113×40×84
CE40100 4.0/3.0 500/17.67 1220 2 8/115 10/150 95 121 113×40×84
CE50200 5.5/4.0 620/21.90 1020 3 8/115 10/150 200 175 136×46×99
CE75270 7.5/5.5 910/32.16 1060 2 8/115 10/150 270 247 184×48×105
CE100500 10.0/7.5 1200/42.41 980 2 8/115 10/150 475 270 185×77×128
CE150500 15.0/11.2 1630/57.60 900 3 8/115 10/150 475 311 185×77×128
CE200500 20.0/15.0 2170/76.70 900 4 8/115 10/150 475 355 186×77×151

¤ Tank capacity is optional as customers request.

  • 100% cast iron pump for better performance and durability.
  • Large tires and rubber feet ensure maximum stability and safe and easy transportation.
  • Fully automatic operation with pressure switch and relief valve.
  • Splash type lubrication.
  • Manual reset overload protection.
  • Air outlet with quick couplings for easy connection of compressed air devices.
  • For professional use.
  • Built according to CE guidelines.
