Two Stage Belt Drive Series

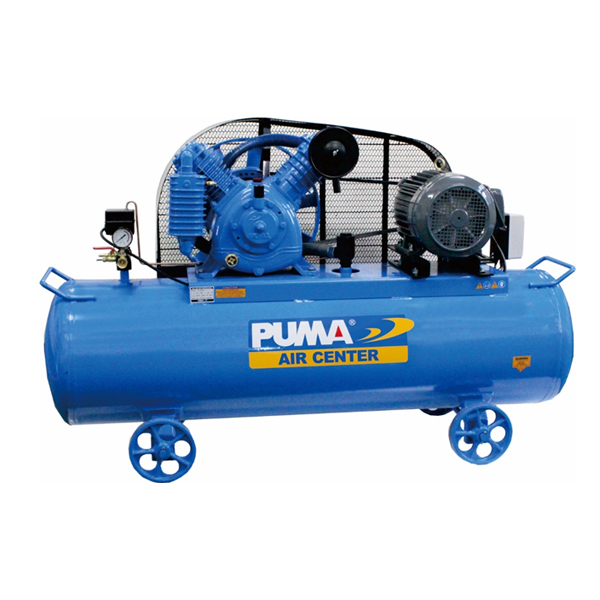

TK7300A (TK75300A)
Two Stage Belt Drive Series
  • TK3160
  • TK5250
  • TK7300A
  • TK10300
  • TK15300
  • TK20300
  • TK30500
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03-4AIR-CFM-60HZ.pngviews/proimages/pd-en/title/04-2MAX-RPM-60HZ.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06WORK.pngviews/proimages/pd-en/title/07MAX.pngviews/proimages/pd-en/title/08AIR-Gal.pngviews/proimages/pd-en/title/09Lbs.pngviews/proimages/pd-en/title/10cm.pngviews/proimages/pd-en/title/11Old-Model.png
TK3160 3.0 / 2.20 300 / 10.5 260 / 9.2 1010 / 850 2 12 / 175 16 / 230 155 / 40 170 / 374 155x58x106 TK30160A
TK5250 5.0 / 3.75 560 / 20.0 485 / 17.1 960 / 800 3 12 / 175 16 / 230 228 / 60 261 / 574 160x70x115 TK50250A
TK7300A 7.5 / 5.60 730 / 26.0 630 /  22.2 1180 / 1000 2 12 / 175 16 / 230 285 / 75 332 / 730 191x76x121 TK75300A
TK10300 10.0 / 7.50 1070 / 38.0 940 / 33.2 870 / 750 3 12 / 175 16 / 230 285 / 75 364 / 800 191x76x121 TK100300A
TK15300 15.0 / 11.20 1470 / 51.9 1470 / 51.9 820 / 820 4 12 / 175 16 / 230 285 / 75 505 / 1110 191x76x142 TK150300A
TK20300 20.0 / 15.00 1980 / 70.0 1670 / 59.0 870 / 740 3 12 / 175 16 / 230 285 / 75 530 / 1166 191x76x142 TK200300A
TK30500 30.0 / 22.00 3000 / 106.0 2530 / 89.3 680 / 580 4 12 / 175 16 / 230 475 / 125 651 / 1432 201 x84x144 TK300500A

Semi-Auto type is to add "U" in no. eg. TUK3160 is semi-auto.

Tank cap. is optional at customers request.

Features:

Special high pressure design, safety, sturdy structure for durability. Availability of special auxiliary cylinder can further enhance compression efficiency.

Usage:

Suitable for use in factories, auto maintenance plant, tire stores and special high pressure supply system.
