Two Stage Belt Drive Series

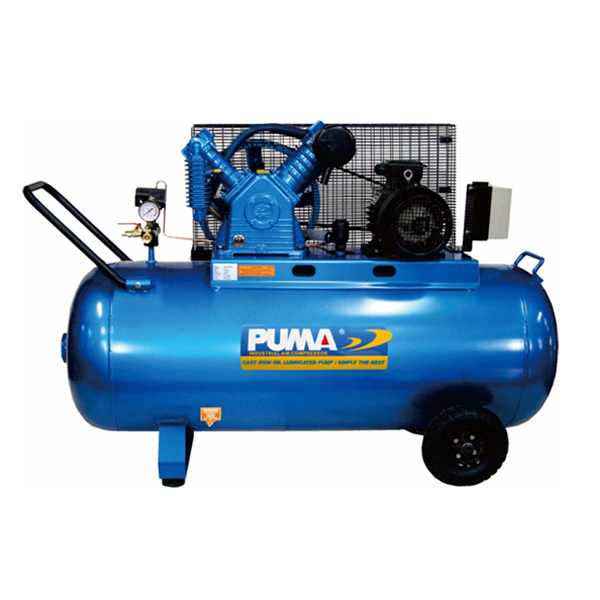

CT50270
Two Stage Belt Drive Series
  • CT30200
  • CT40200
  • CT50270
  • CT100270
  • CT150500
Check the item No. you interested to view their specification
Download
Inquiry
Comparison Chart
views/proimages/pd-en/title/01Model.pngviews/proimages/pd-en/title/02HP-KW.pngviews/proimages/pd-en/title/03AIR-CFM.pngviews/proimages/pd-en/title/04MAX-RPM.pngviews/proimages/pd-en/title/05NO.pngviews/proimages/pd-en/title/06-3WORK-Bar.pngviews/proimages/pd-en/title/07-3MAX-Bar.pngviews/proimages/pd-en/title/08-2AIR-l.pngviews/proimages/pd-en/title/09-2kg.pngviews/proimages/pd-en/title/10cm.png
CT30200 3.0/2.2 260/9.20 810 3 12/175 14/200 200 178 128×60×87
CT40200 4.0/3.0 360/12.73 910 3 12/175 14/200 200 185 128×60×87
CT50270 5.5/4.0 500/17.67 830 2 12/175 14/200 270 253 180×59×103
CT100270 10.0/7.5 1000/35.34 830 3 12/175 14/200 270 270 180×59×103
CT150500 15.0/11.2 1500/53.00 830 4 12/175 14/200 475 355 186×77×151

¤ Tank capacity is optional as customers request.

  • Heavy duty two stage high efficient air compressor.
  • 100% cast iron pump for better performance and durability.
  • Large tires and rubber feet ensure maximum stability and safe and easy transportation.
  • Fully automatic operation with pressure switch and relief valve.
  • For professional and industrial use.
  • Built according to CE guildlines.
