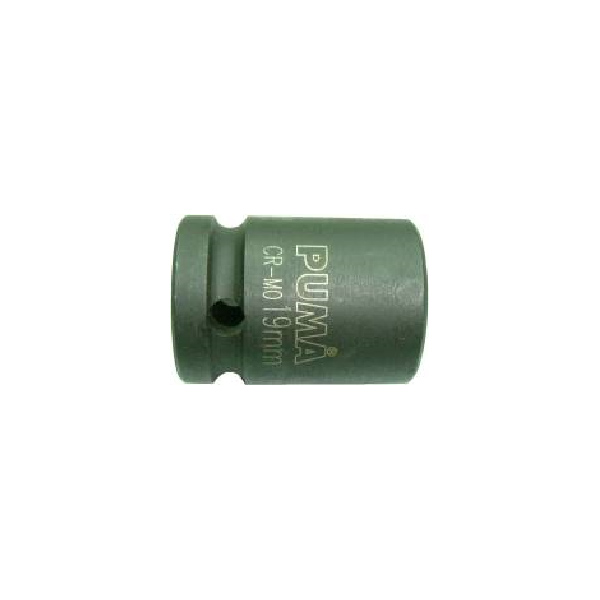

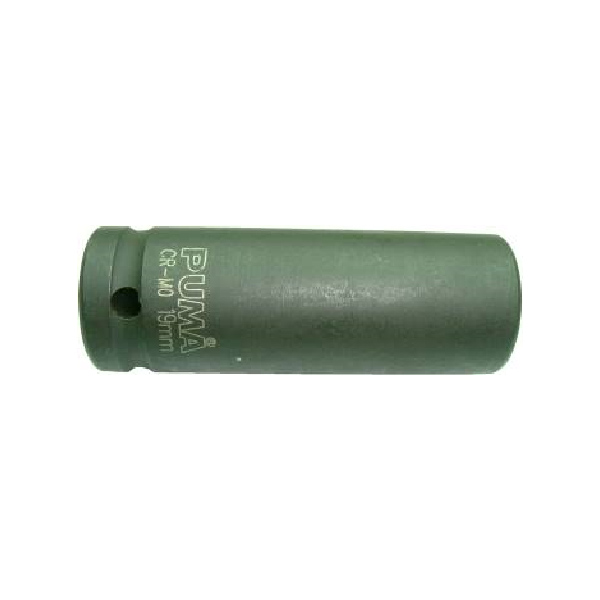

| 3/8” 衝擊板手套筒 (DIN 3129. CR-MO) | 3/8” 加長型衝擊板手套筒 (DIN 3129. CR-MO) |
|---|
| 型號 | 規格 (mm) | D1 (mm) | D2 (mm) | L (mm) | 型號 | 規格 (mm) | D1 (mm) | D2 (mm) | L (mm) |
|---|
| D031-07M |
7 |
12.1 |
19 |
32 |
D033-07M |
7 |
12.1 |
19 |
63 |
| D031-08M |
8 |
13.5 |
19 |
32 |
D033-08M |
8 |
13.5 |
19 |
63 |
| D031-09M |
9 |
14.6 |
19 |
32 |
D033-09M |
9 |
14.6 |
19 |
63 |
| D031-10M |
10 |
15.9 |
19 |
32 |
D033-10M |
10 |
15.9 |
19 |
63 |
| D031-11M |
11 |
17.2 |
19 |
32 |
D033-11M |
11 |
17.2 |
19 |
63 |
| D031-12M |
12 |
18.4 |
19 |
32 |
D033-12M |
12 |
18.4 |
19 |
63 |
| D031-13M |
13 |
19.6 |
22 |
32 |
D033-13M |
13 |
19.6 |
22 |
63 |
| D031-14M |
14 |
20.9 |
22 |
32 |
D033-14M |
14 |
20.9 |
22 |
63 |
| D031-16M |
16 |
23.4 |
22 |
32 |
D033-16M |
16 |
23.4 |
22 |
63 |
| D031-17M |
17 |
24.6 |
22 |
32 |
D033-17M |
17 |
24.6 |
22 |
63 |
| D031-18M |
18 |
25.9 |
22 |
32 |
D033-18M |
18 |
25.9 |
22 |
63 |
| D031-19M |
19 |
27.1 |
22 |
32 |
D033-19M |
19 |
27.1 |
22 |
63 |
| D031-21M |
21 |
30.3 |
22 |
32 |
D033-21M |
21 |
30.3 |
22 |
63 |
| D031-22M |
22 |
31.6 |
22 |
32 |
D033-22M |
22 |
31.6 |
22 |
63 |
| 1/2” 衝擊板手套筒 (DIN 3129. CR-MO) | 1/2” 加長型衝擊板手套筒 (DIN 3129. CR-MO) |
|---|
| 型號 | 規格 (mm) | D1 (mm) | D2 (mm) | L (mm) | 型號 | 規格 (mm) | D1 (mm) | D2 (mm) | L (mm) |
|---|
| D041-08M |
8 |
14.6 |
25 |
38 |
D043-08M |
8 |
14.6 |
25 |
78 |
| D041-09M |
9 |
15.8 |
25 |
38 |
D043-09M |
9 |
15.8 |
25 |
78 |
| D041-10M |
10 |
17.1 |
25 |
38 |
D043-10M |
10 |
17.1 |
25 |
78 |
| D041-11M |
11 |
18.4 |
25 |
38 |
D043-11M |
11 |
18.4 |
25 |
78 |
| D041-12M |
12 |
19.6 |
25 |
38 |
D043-12M |
12 |
19.6 |
25 |
78 |
| D041-13M |
13 |
20.8 |
25 |
38 |
D043-13M |
13 |
20.8 |
25 |
78 |
| D041-14M |
14 |
22.1 |
25 |
38 |
D043-14M |
14 |
22.1 |
25 |
78 |
| D041-15M |
15 |
23.3 |
30 |
38 |
D043-15M |
15 |
23.3 |
30 |
78 |
| D041-16M |
16 |
24.6 |
30 |
38 |
D043-16M |
16 |
24.6 |
30 |
78 |
| D041-17M |
17 |
25.8 |
30 |
38 |
D043-17M |
17 |
25.8 |
30 |
78 |
| D041-18M |
18 |
27.1 |
30 |
38 |
D043-18M |
18 |
27.1 |
30 |
78 |
| D041-19M |
19 |
28.3 |
30 |
38 |
D043-19M |
19 |
28.3 |
30 |
78 |
| D041-21M |
21 |
30.8 |
30 |
38 |
D043-21M |
21 |
30.8 |
30 |
78 |
| D041-22M |
22 |
32.3 |
30 |
38 |
D043-22M |
22 |
32.3 |
30 |
78 |
| D041-23M |
23 |
33.3 |
30 |
43 |
D043-23M |
23 |
33.3 |
30 |
78 |
| D041-24M |
24 |
34.6 |
30 |
43 |
D043-24M |
24 |
34.6 |
30 |
78 |
| D041-27M |
27 |
38.3 |
30 |
43 |
D043-27M |
27 |
38.3 |
30 |
78 |
| D041-30M |
30 |
42.1 |
30 |
48 |
D043-30M |
30 |
42.1 |
30 |
78 |
| D041-32M |
32 |
44.6 |
30 |
48 |
D043-32M |
32 |
44.6 |
30 |
78 |

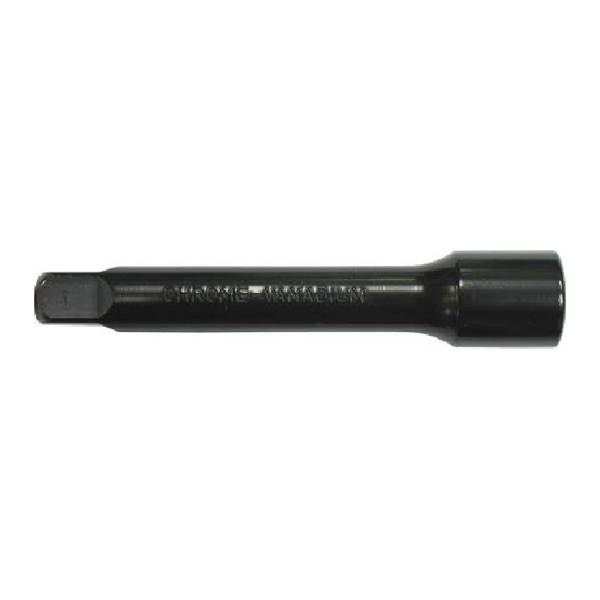

| 3/8” & 1/2” 延長桿 (DIN 3129. CR-MO) |
|---|
| 型號 | 規格 | D (mm) | L (mm) |
|---|
| 3/8’’ |
| D03E-03M |
3” |
19 |
75 |
| D03E-06M |
6” |
19 |
150 |
| 1/2’’ |
| D04E-03M |
3” |
25 |
75 |
| D04E-05M |
5” |
25 |
125 |
| D04E-10M |
10” |
25 |
250 |

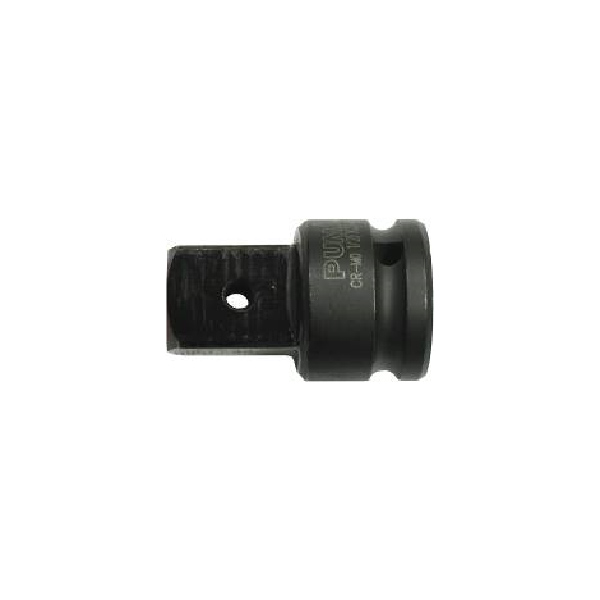

| 3/8” & 1/2” 接頭 (DIN 3129. CR-MO) |
|---|
| 型號 | 規格 (mm) | D (mm) | L (mm) |
|---|
| 3/8’’ |
D03A-08M |
1/2” |
22 |
28 |
| 1/2’’ |
| D04A-06M |
3/8” |
25 |
38 |
| D04A-12M |
3/4” |
30 |
48 |
