3/4"&1"氣動套筒
  • 3/4” 衝擊板手套筒
  • 3/4” 加長型衝擊板手套筒
  • 1” 衝擊板手套筒
  • 1” 加長型衝擊板手套筒
  • 3/4” & 1” 延長桿
  • 3/4” & 1” 接頭
specCheckListnote
下載
詢價
比較

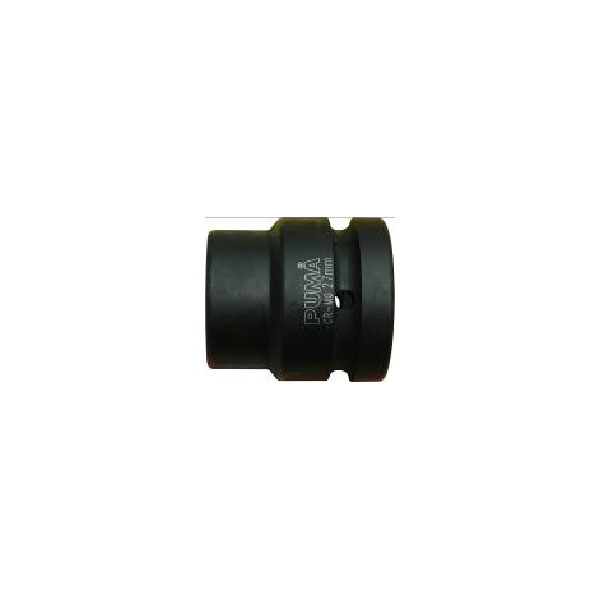

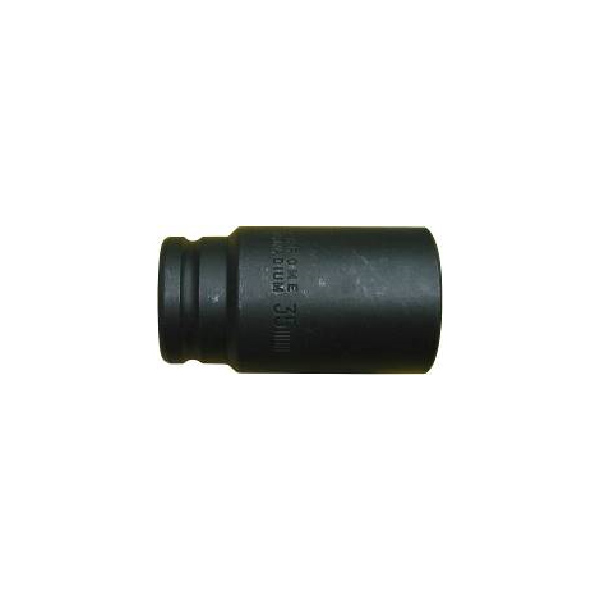

3/4” 衝擊板手套筒 (DIN 3129. CR-MO)3/4” 加長型衝擊板手套筒 (DIN 3129. CR-MO)
型號規格 (mm)D1 (mm)D2 (mm)L (mm)型號規格 (mm)D1 (mm)D2 (mm)L (mm)
D061-17M 17 30.1 44 50 D063-17M 17 30.1 44 90
D061-19M 19 32.6 44 50 D063-19M 19 32.6 44 90
D061-21M 21 35.1 44 50 D063-21M 21 35.1 44 90
D061-22M 22 36.6 44 50 D063-22M 22 36.6 44 90
D061-23M 23 37.6 44 50 D063-23M 23 37.6 44 90
D061-24M 24 38.9 44 50 D063-24M 24 38.9 44 90
D061-26M 26 41.3 44 53 D063-26M 26 41.3 44 90
D061-27M 27 42.6 44 53 D063-27M 27 42.6 44 90
D061-30M 30 46.4 44 53 D063-30M 30 46.4 44 90
D061-32M 32 48.9 44 56 D063-32M 32 48.9 44 90
D061-33M 33 50.6 44 56 D063-33M 33 50.6 44 90
D061-36M 36 53.9 44 56 D063-36M 36 53.9 44 90
D061-38M 38 56.4 44 57 D063-38M 38 56.4 44 90
D061-40M 40 58.9 44 57 D063-40M 40 58.9 44 90
D061-41M 41 60.1 44 57 D063-41M 41 60.1 44 90
D061-42M 42 61.4 44 57 D063-42M 42 61.4 44 90
D061-46M 46 66.4 44 62 D063-46M 46 66.4 44 90
D061-47M 47 67.6 44 67 D063-47M 47 67.6 44 90
D061-50M 50 71.4 54 72 D063-50M 50 71.4 54 90
1” 衝擊板手套筒 (DIN 3129. CR-MO)1” 加長型衝擊板手套筒 (DIN 3129. CR-MO)
型號規格 (mm)D1 (mm)D2 (mm)L (mm)型號規格 (mm)D1 (mm)D2 (mm)L (mm)
D081-19M 19 35.6 54 58 D083-19M 19 35.6 54 90
D081-21M 21 38.1 54 58 D083-21M 21 38.1 54 90
D081-23M 23 40.6 54 58 D083-23M 23 40.6 54 90
D081-24M 24 41.9 54 58 D083-24M 24 41.9 54 90
D081-27M 27 45.6 54 58 D083-27M 27 45.6 54 90
D081-28M 28 47.0 54 58 D083-28M 28 47.0 54 90
D081-30M 30 49.4 54 60 D083-30M 30 49.4 54 90
D081-31M 31 50.6 54 60 D083-31M 31 50.6 54 90
D081-32M 32 51.9 54 61 D083-32M 32 51.9 54 90
D081-33M 33 53.6 54 61 D083-33M 33 53.6 54 90
D081-35M 35 55.7 54 61 D083-35M 35 55.7 54 90
D081-36M 36 56.9 54 65 D083-36M 36 56.9 54 90
D081-38M 38 59.4 54 65 D083-38M 38 59.4 54 90
D081-41M 41 63.1 54 65 D083-41M 41 63.1 54 90
D081-46M 46 69.4 54 74 D083-46M 46 69.4 54 100
D081-50M 50 74.4 54 74 D083-50M 50 74.4 54 100
D081-55M 55 80.7 54 85 D083-55M 55 80.7 54 100
D081-60M 60 87.1 54 89 D083-60M 60 87.1 54 120

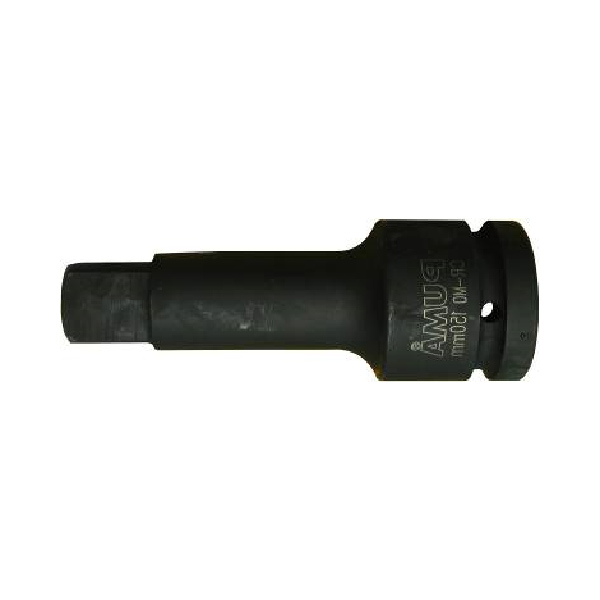

3/4” & 1” 延長桿 (DIN 3129. CR-MO)
型號規格D (mm)L (mm)
3/4’’
D06E-06M 6” 44 150
D06E-08M 8” 44 200
D06E-10M 10” 44 250
1’’
D08E-06M 6” 54 150
D08E-08M 8” 54 200

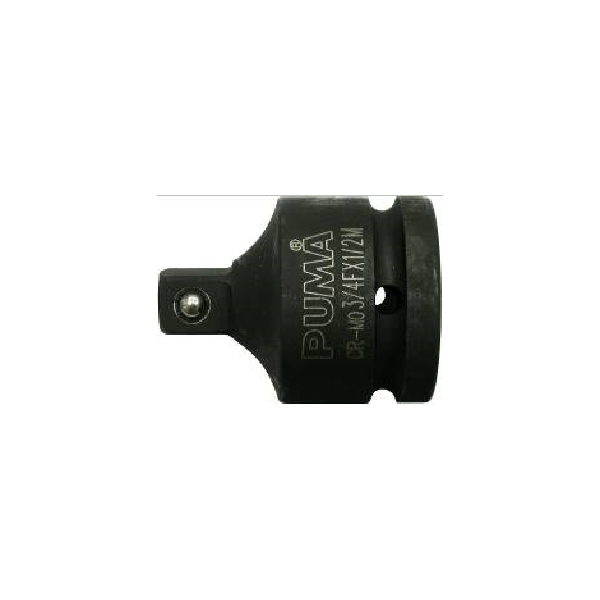

3/4” & 1” 接頭 (DIN 3129. CR-MO)
Model No.Size (mm)D (mm)L (mm)
3/4’’ D06A-08M 1/2” 44 58
D06A-16M 1” 44 63
1’’ D08A-12M 3/4” 54 75
